Removing Accelerator Pedal
WARNING: This page is about a different variant/trim than selected.

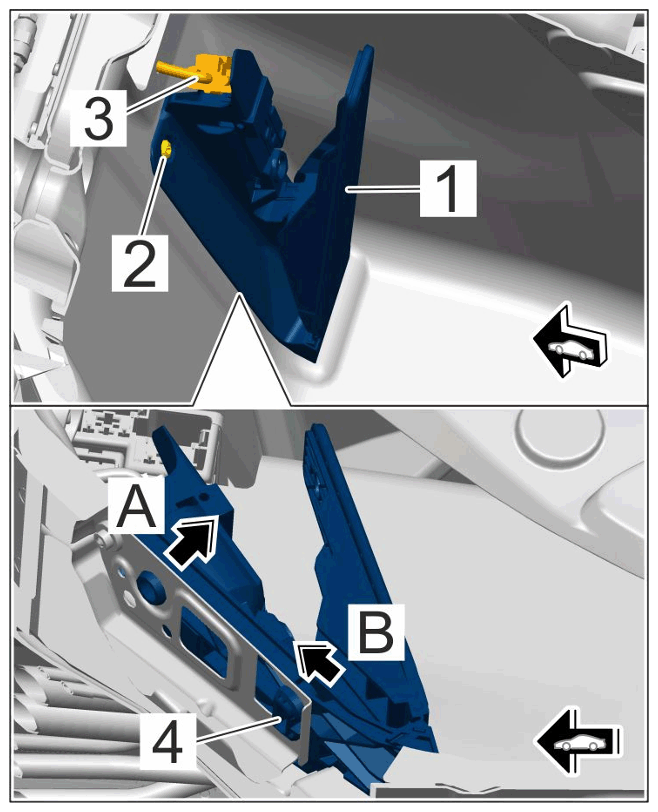

- Remove accelerator pedal -1-
.
Unscrew screw -2-
.
Release and unplug electric plug connection -3-
.
Lift the accelerator pedal slightly at the front -arrow A-
and push it up -arrow B-
so that the hook -4-
is guided out of the bracket.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Accelerator pedal
