Preliminary Work

1. Remove battery/vehicle electrical system.

   270619 REMOVING AND INSTALLING BATTERY/VEHICLE ELECTRICAL SYSTEM

Information

Make sure not to damage the electric lines.

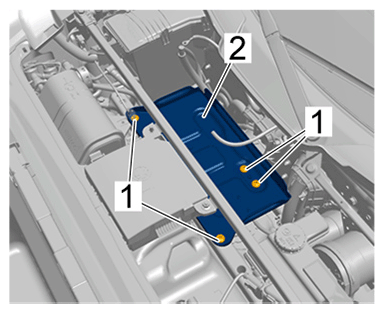

1. Unscrew fastening screws -1-  on the battery console -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

2. Carefully lift the battery console -2-  and turn it around until the electric plug connection for the fuel pump control unit is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Battery console

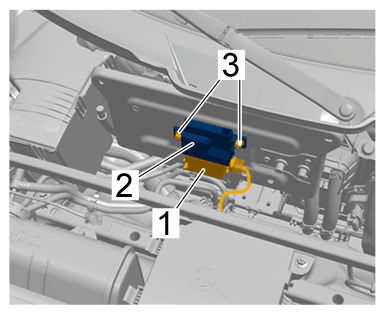

3. Release and disconnect electric plug connection -1-  on control unit for fuel pump -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuel pump control unit

4. Unscrew fastening nuts -3-  and remove control unit for fuel pump -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
