Installing Control Unit For Fuel Pump

1. Installation is performed in reverse order. Pay particular attention to the following:

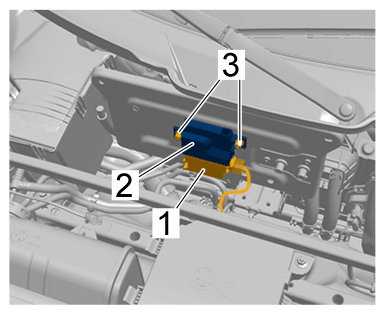

Tighten fastening nuts -3-  on fuel pump control unit -2-  to > Tightening torque 2.5 Nm (1.75 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel pump control unit

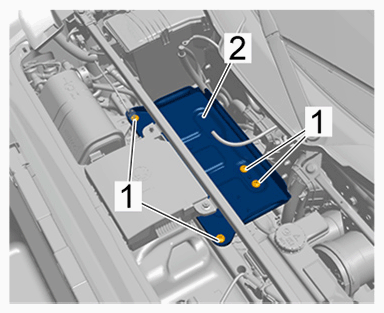

Tighten fastening screws -1-  on battery console -2-  to > Tightening torque 23 Nm (17 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Battery console
