Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Retaining bracket to body | M8 x 25 | Tightening torque | 20 Nm (15 ftlb.) | ||
| Restraining strap to body (all-wheel drive) | Screws, M8 x 35 | Tightening torque | 23 (17 ftlb.) N | m | |
| Restraining strap to body | Screw, M8 x 35 | Tightening torque | 23 Nm (17 ftlb.) | ||

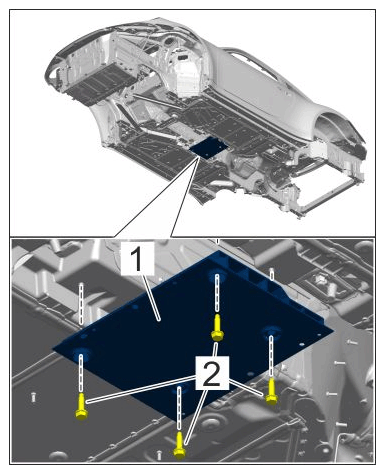

| Rear tunnel reinforcement to floorpan | Item 2 | Tightening torque | 40 Nm (30 ftlb.) | ||
|
Crash reinforcement in rear tunnel |
