Removing Carbon Canister: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect carbon canister -4-  .

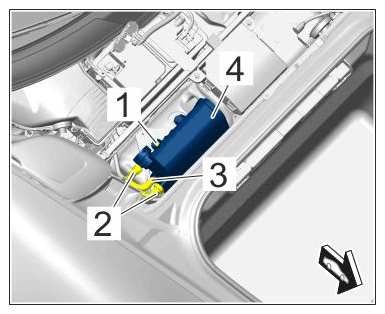

    G15505897Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carbon canister

    Unscrew screw -1-  .

    Release and disconnect plug-in couplings -2-  .

    Pull off hose -3-  .

  2. Remove carbon canister -1-  .

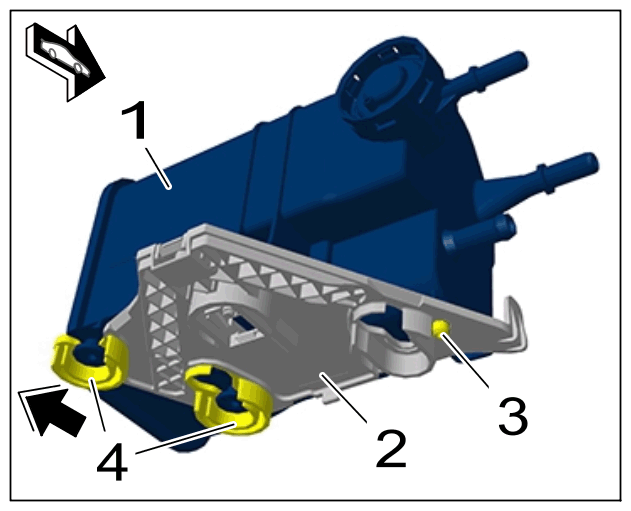

G15505898Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister - view from below

Unclip carbon canister -1-  from latches -4-  on the retainer plate -2-  in -direction of arrow-  . When doing so, make sure not to damage the guide pin -3-  .
