Installing Carbon Canister: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Install carbon canister -1-  .

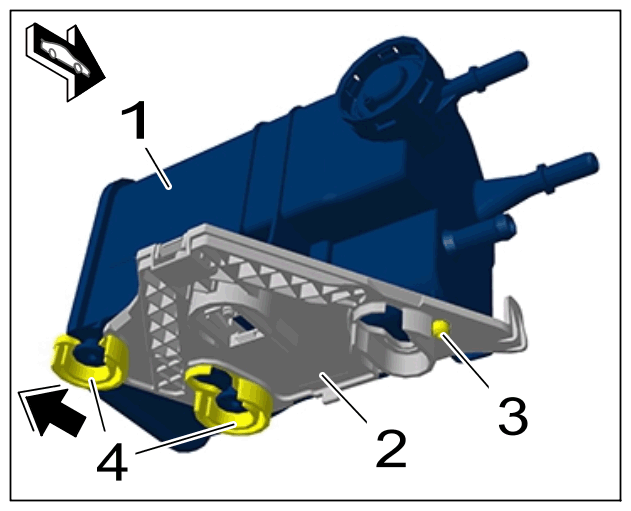

    G15505901Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carbon canister - view from below

    Clip carbon canister -1-  in the opposite direction to -direction of arrow-  into latches -4-  . When doing so, make sure not to damage the guide pin -3-  .

  2. Secure carbon canister -4-  .

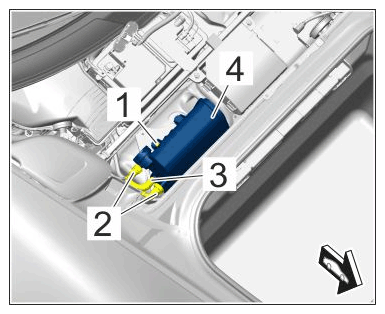

    G15505902Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carbon canister

    Screw in and tighten screw -1-  .

    > Tightening torque 3 Nm (2 ftlb.)

    Connect the hose -3-  .

    Connect and lock plug-in couplings -2-  .
