Removing Tank Vent
WARNING: This page is about a different variant/trim than selected.

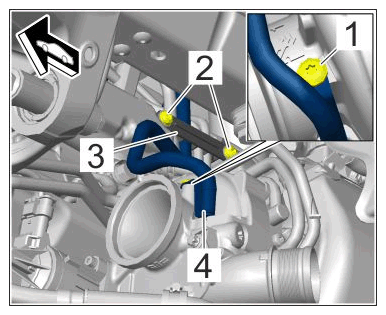

- Disconnect tank vent line -4-
on the turbocharger.
Unscrew screws -1 and 2- and unclip line bracket -3- .
Disconnect tank vent line -4- from turbocharger.
Tank vent line, bottom
Information
Shown with engine removed for greater clarity.

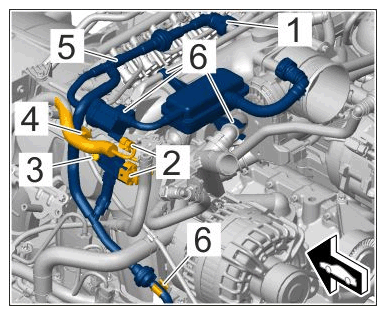

- Remove tank vent valve.
Release and disconnect quick connector -1- .
Release and disconnect cable plug -2- .
Unscrew screw -3- .
Unclip wire harness -4- .
Unclip tank vent valve with tank vent lines -5- at the fastening points -6- and carefully guide out of the engine compartment.
Tank vent line, top
