Installing Tank Vent

Information

Shown with engine removed for greater clarity.

Information

Shown with engine removed for greater clarity.

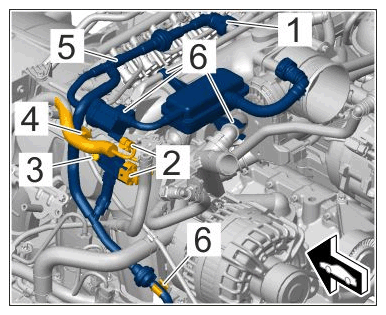

1. Install tank vent valve.

   Carefully guide tank vent valve with tank vent lines -5-  into the engine compartment and clip in at the fastening points -6-  .

   Clip in wire harness -4-  .

   Fit and tighten screw -3-  .

   > Tightening torque 10 Nm (7.5 ftlb.)

   Plug in cable plug -2-  .

   Connect quick connector -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tank vent line, top

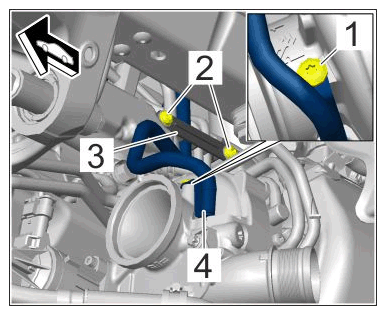

2. Fasten tank vent line on the turbocharger.

   Replace O-rings on the tank vent line and insert tank vent line -4-  into the turbocharger.

   Clip in line bracket -3-  , fit screws -1 and 2-  and tighten them.

   -1-  > Tightening torque 10 Nm (7.5 ftlb.)

   -2-  > Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, bottom
