Removing Low-Pressure Sensor
WARNING: This page is about a different variant/trim than selected.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.
→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
→ Secure collection containers/vessels to prevent them from tipping over.
- Remove low-pressure sensor. Catch escaping fuel.
Release and disconnect cable plug -1- .
Unscrew low-pressure sensor -2- .
To unscrew the sensor, counterhold at the square section -3- of the fuel line using an open-ended wrench.

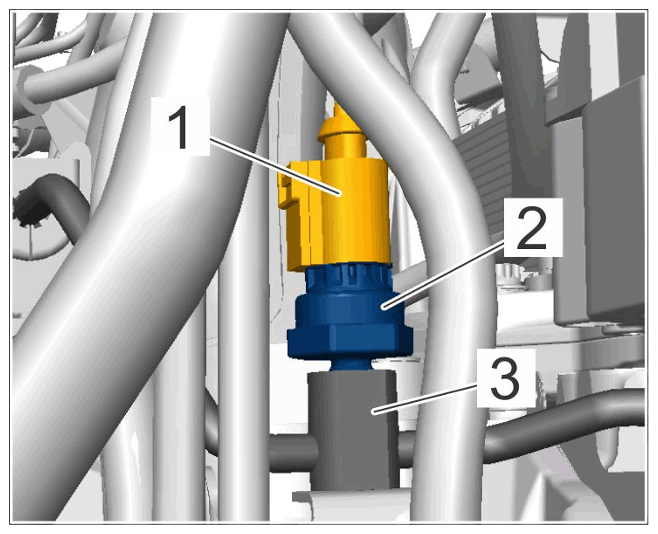

Low-pressure sensor on fuel line
