Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Lower trailing arm to wheel bearing housing | Hexagon nut, M12 x 1.5/always replace following removal | Tightening torque | 100 Nm (74 ftlb.) | ||
| Lower trilling arm to wheel bearing housing (Turbo/Turbo S) | Hexagon nut, M14 x 1.5/always replace following removal | Tightening torque | 160 Nm (118 ftlb.) | ||
| Lower trailing arm to front-axle cross member | Hexagon-head bolt, M12 x 1.5 x 90 and hexagon nut/always replace following removal | Initial tightening | 70 Nm (52 ftlb.) | ||
| Lower trailing arm to front-axle cross member | Hexagon-head bolt, M12 x 1.5 x 90 and hexagon nut/always replace following removal | Final tightening | + 180° | ||
| Control arm to lower trailing arm | Hexagon-head bolt, M14 x 1.5 x 95 and hexagon nut | Tightening torque | 160 (118 ftlb.) Nm |
||
| Lower trailing arm cover to lower trailing arm | Internal hexagon round head bolt, M6 x 25 | Tightening torque | 10 (7.5 ftlb.) Nm |
||

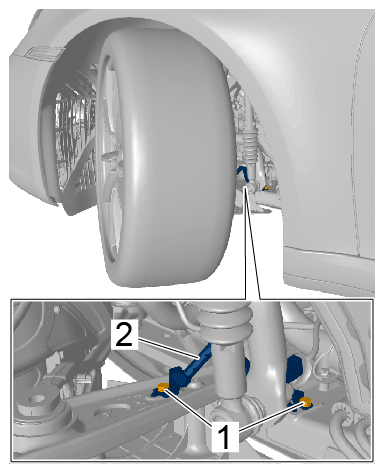

| Fastening screws securing front angle sensor for headlight beam adjustment to front axle | Item 1 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Front angle sensor for headlight beam adjustment |
|||||
