Installation Position

WARNING: This page is about a different variant/trim than selected.

When removing the front-axle cross member, always pay particular attention to the following:

The front section -1- must not be separated from the rear section -2- when installed.
The front-axle cross member must only be replaced as a complete component. Replacing the individual sections -1 or 2- is not permitted.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

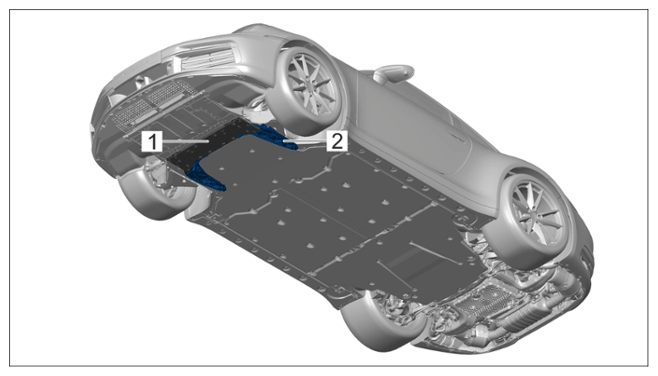

Installation position

1	Front-axle cross member (front section)
2	Front-axle cross member (rear section)
