Removing Chain Tensioner - Cylinder Bank 1

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

  1. Remove chain tensioner -1-  .

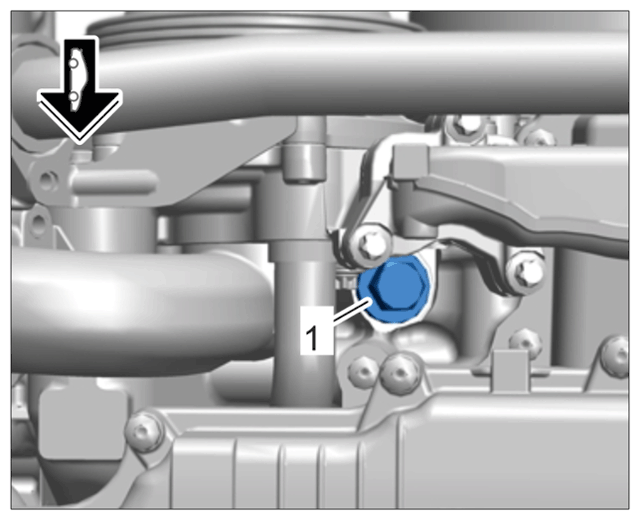

    G15487530Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Chain tensioner on cylinder bank 1

    Unscrew chain tensioner -1-  .

    Remove chain tensioner -1-  and collect emerging oil.
