Installing Chain Tensioner - Cylinder Bank 2

WARNING: This page is about a different variant/trim than selected.

Clean chain tensioner -1- and sealing faces, replace sealing ring -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

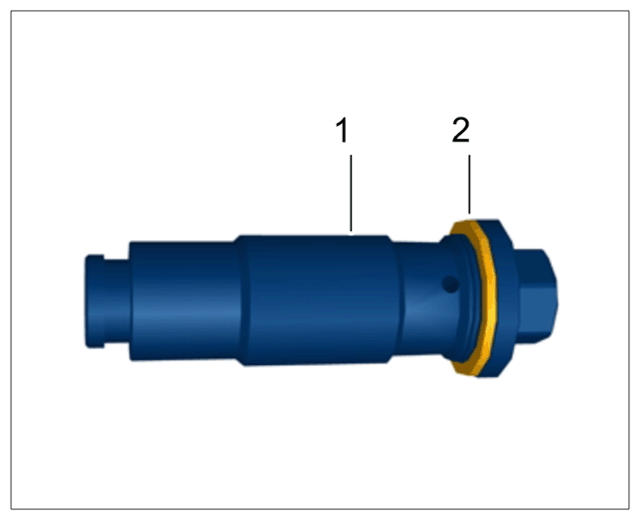

Chain tensioner with sealing ring
Install chain tensioner -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

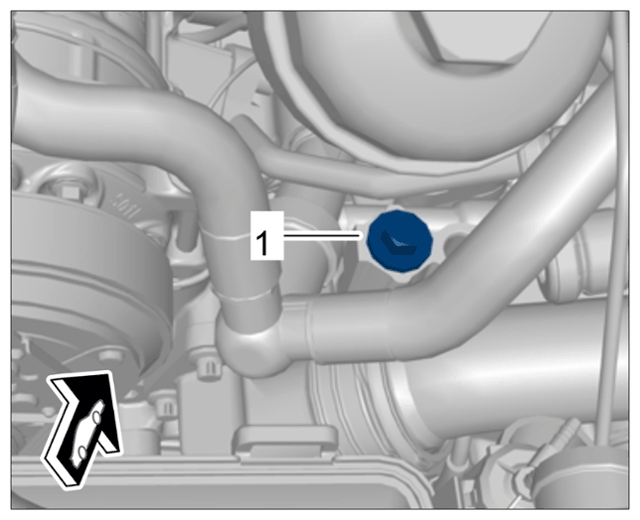

Chain tensioner on cylinder bank 2

Screw in and tighten chain tensioner -1- .

> Tightening torque 80 Nm (59 ftlb.)
Secure vent line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

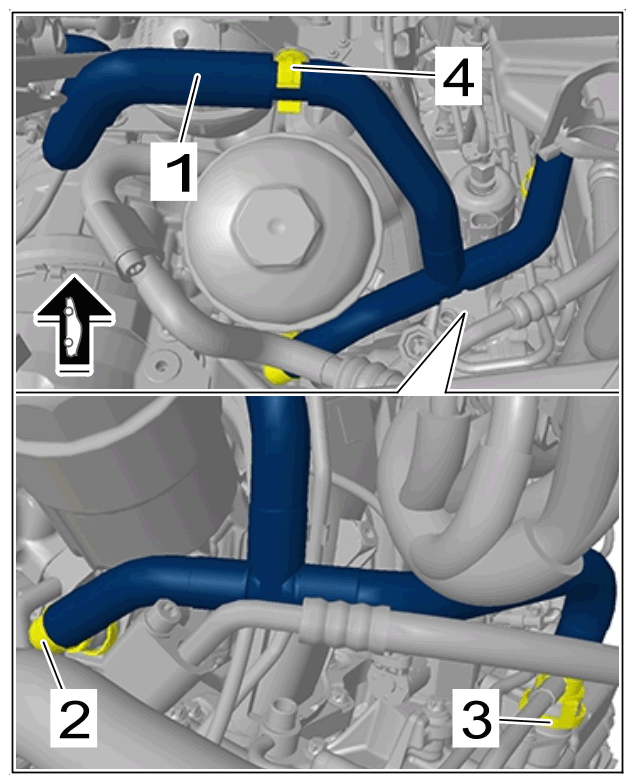

Vent line

Position vent line -1- .

Insert vent line -1- into clip -4- .

Push on and lock quick connectors -2 and 3- .
