Installing Chain Tensioner - Cylinder Bank 1
WARNING: This page is about a different variant/trim than selected.
- Clean chain tensioner -1-
and sealing faces, replace sealing ring -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

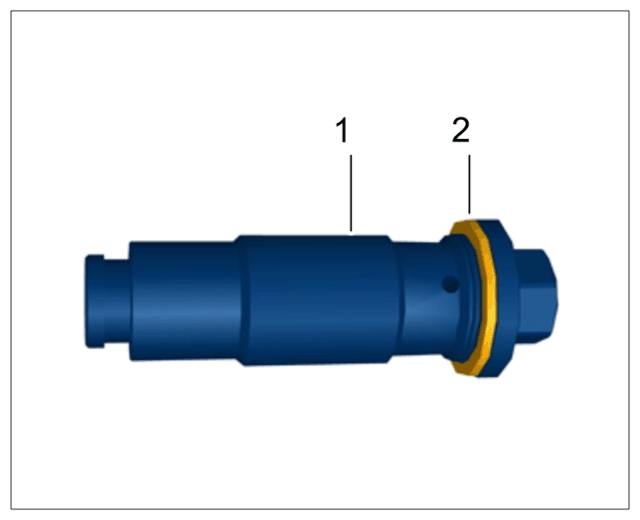

Chain tensioner with sealing ring
- Install chain tensioner -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

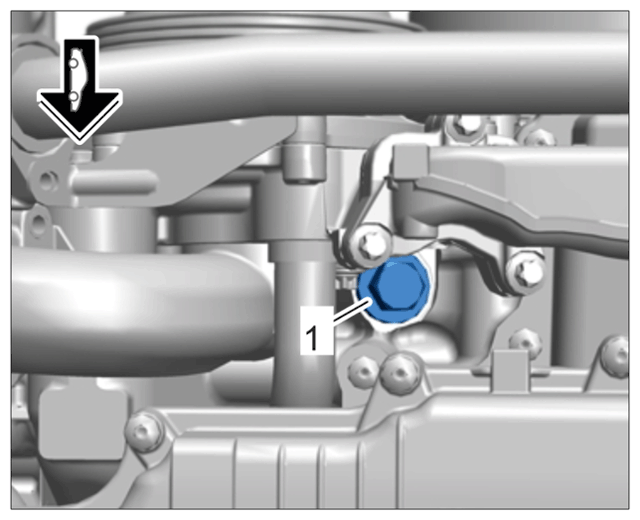

Chain tensioner on cylinder bank 1
Screw in and tighten chain tensioner -1-
.
> Tightening torque 80 Nm (59 ftlb.)
