Installing Cover For Drive Belt
WARNING: This page is about a different variant/trim than selected.
- Install covers on drive belt -1-
and generator cover -2-
.
Position drive belt covers -1-
and generator cover -2-
.
Screw in and tighten screws -3-
.
> Tightening torque 10 Nm (7.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

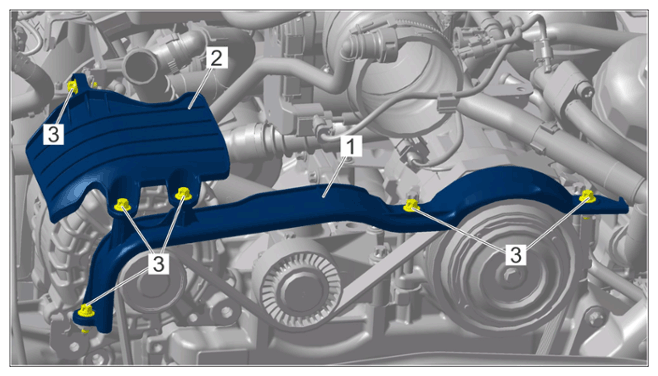

Drive belt covers and generator cover.
