Installing Vibration Damper
WARNING: This page is about a different variant/trim than selected.

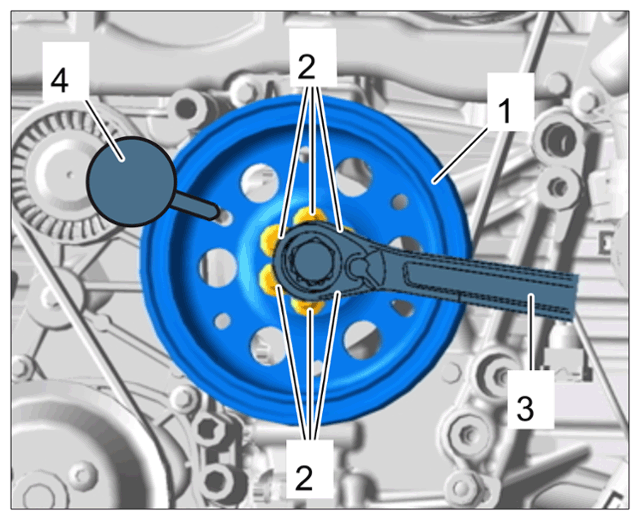

- Install vibration damper -1-
.
Vibration damper
Fit vibration damper -1- in such a way that the staking bore is flush with the bore in the crankcase.
Screw in new screws -2- as far as they will go by hand.
Lock vibration damper -1- in TDC position using > 9595/1 - locking pin-4- .
Tighten screws -2- in diagonally opposite sequence.
> initial tightening 3 Nm
> initial tightening 8 Nm
> Torque angle 90°
