Installing Crankshaft Sealing Ring

WARNING: This page is about a different variant/trim than selected.

NOTE: Incorrect tool

Risk of damage to components
→ Use prescribed tool.

> 9699/3 - Assembly aid-5- must be prepared.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

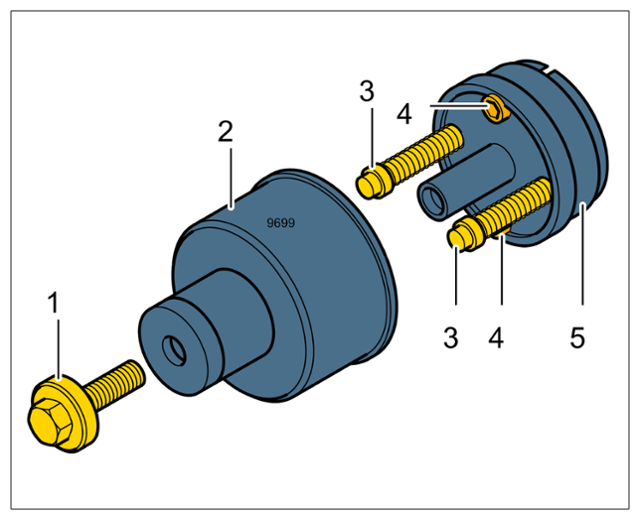

Insertion tool 9699 with assembly aid 9699/3

Unscrew screw -1- .

> 9699/3 - Assembly aid-5- must be inserted into the sleeve -2- of the > 9699 - insertion tool .

Screw in screw -1- by hand.
Adjust insertion tool for fitting the support sleeve of the sealing ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

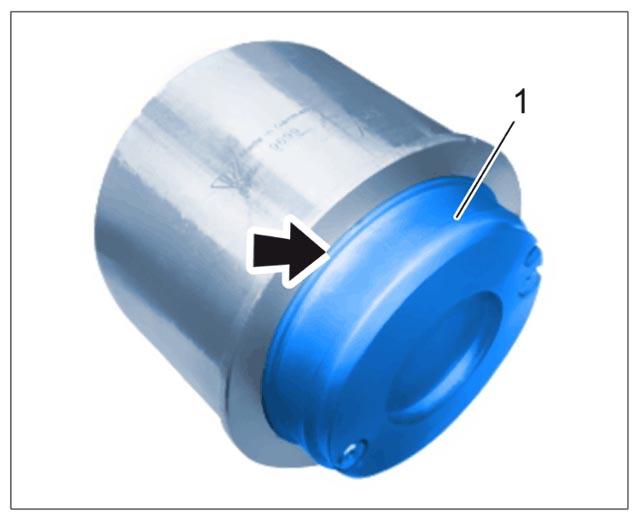

Insertion tool for positioning sealing ring

Unscrew the screw until the groove -Arrow- on the assembly aid -1- is flush with the contact surface of the sleeve.
CAUTION:
Damage to the sealing lip.
- Leaks
  → The crankshaft flange and tools must be perfectly clean and free of grease.

  → The sealing ring must be fitted dry, i.e. no oil, grease or other lubricants can be used.

  → The crankcase bore must not be oiled.

  → The sealing ring can only be positioned on the assembly tool using the supporting sleeve.

  → The new crankshaft sealing ring (PTFE) is supplied on a supporting sleeve as a spare part.

  → Do not remove the sealing ring from the supporting sleeve.
Information

The crankshaft sealing ring must not be coated with lubricant for assembly.
Slide new crankshaft sealing ring -1- with the supporting sleeve -2- onto the > 9699/3 - assembly aid . Make sure that the collar of the sleeve is facing away from the tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

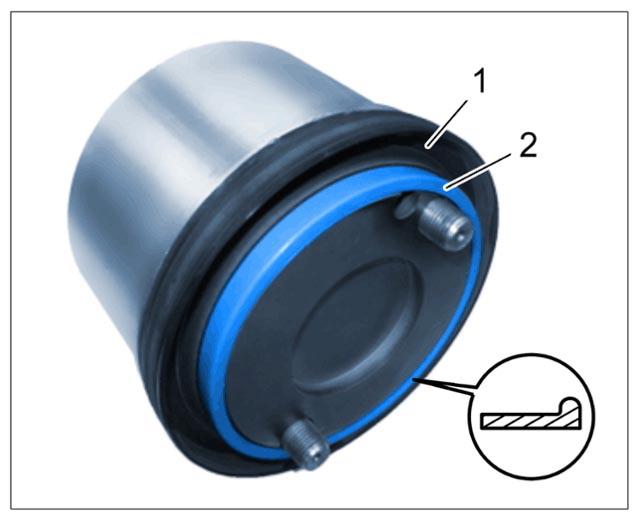

Crankshaft sealing ring with supporting sleeve on insertion tool
> 9699 - Insertion tool must now be fitted. Then, check the position of the dowel pin. > Insertion tool on crankshaft flange
Secure the insertion tool to the crankshaft flange using bolts -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

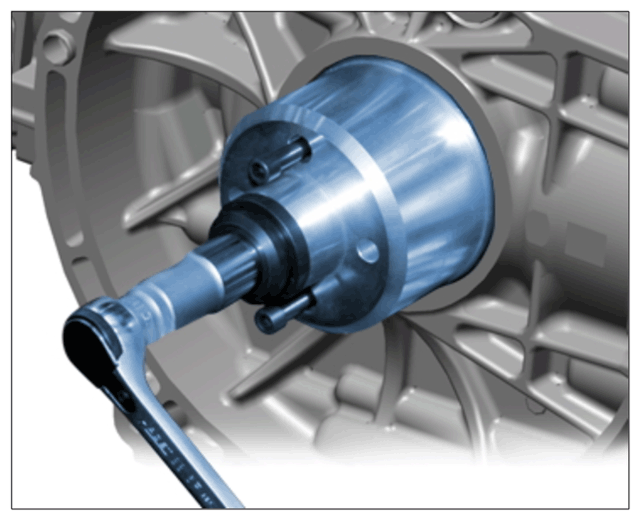

Insertion tool on crankshaft flange
Pull in crankshaft sealing ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

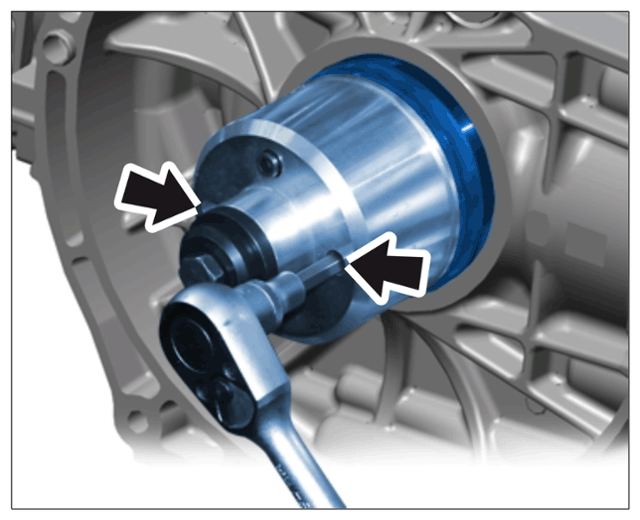

Installing crankshaft sealing ring

Screw in screw on the > 9699 - insertion tool until the crankshaft sealing ring is pulled in fully.

> 9699 - Insertion tool must remain fitted for two minutes.

Turn hexagon-head bolt anti-clockwise until the guide screws are still just visible.

Loosen both cheese head bolts and remove the tool.
Check that the crankshaft sealing ring is seated correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

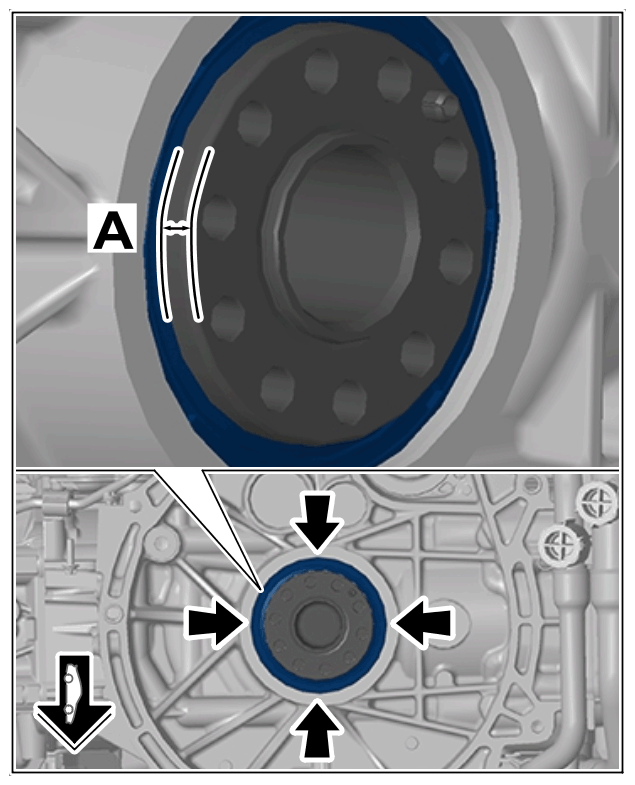

Installation dimension of crankshaft sealing ring - transmission side

Measure dimension -A - at four positions offset by 90° -Arrows- .

> Dimension 7 mm +/- 0.3 mm

If dimension -A - differs from the required value at one or more points: Fit the tools again and pull the crankshaft sealing ring in fully.
Leave support sleeve -1- on the tool after fitting to protect the edges of the tool.

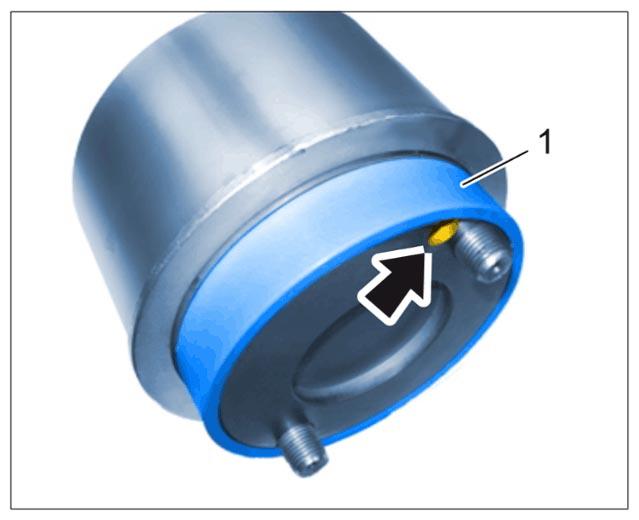

Using a small screwdriver, carefully lever off the supporting sleeve -1- at the ventilation bore -Arrow- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Supporting sleeve on insertion tool
