WM, 131020 Removing And Installing Pistons: Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image

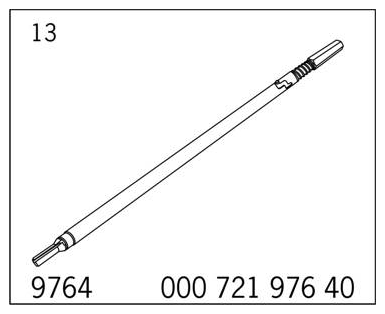

disassembly tool	Special tool	> 9764	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
locating pin	Special tool	> 9595/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

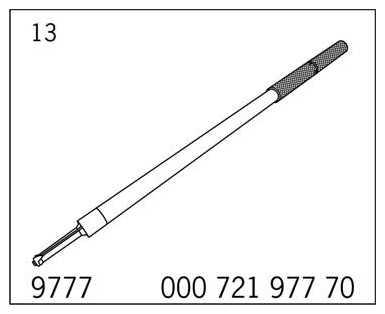

Disassembly tool	Special tool	> 9777	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

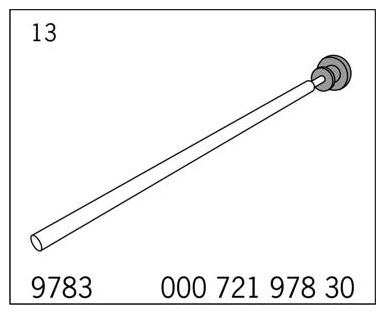

assembly aid	Special tool	> 9783	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

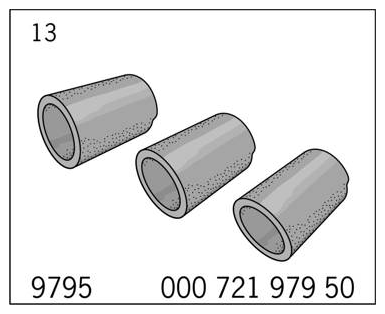

assembly aid	Special tool	> 9795	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mounting parts	Special tool	> 9590	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
a hot - air blower	Vehicle-specific service equipment	> VAS 1978/14A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

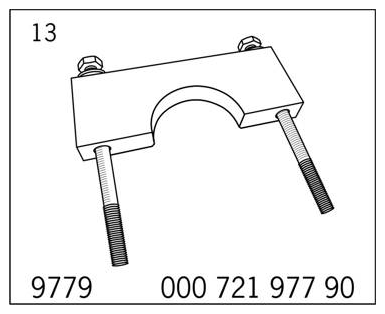

Holding bridge	Special tool	> 9779	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

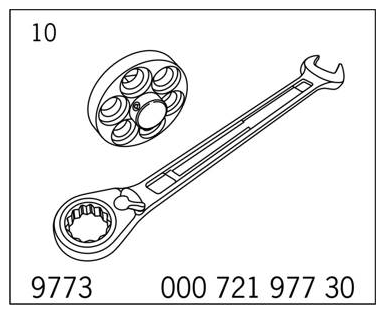

Fit turning device	Special tool	> 9773	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

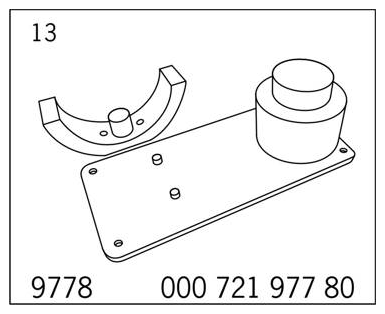

retaining device	Special tool	> 9778	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

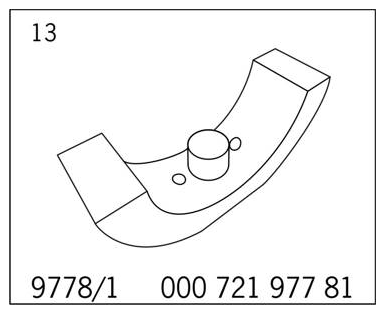

piston receiving element	Special tool	> 9778/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

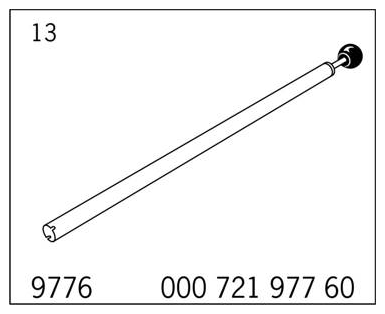

assembly tool	Special tool	> 9776	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

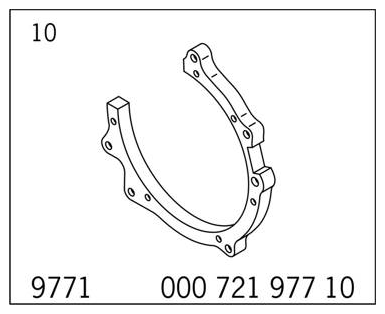

engine adapter	Special tool	> 9771	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

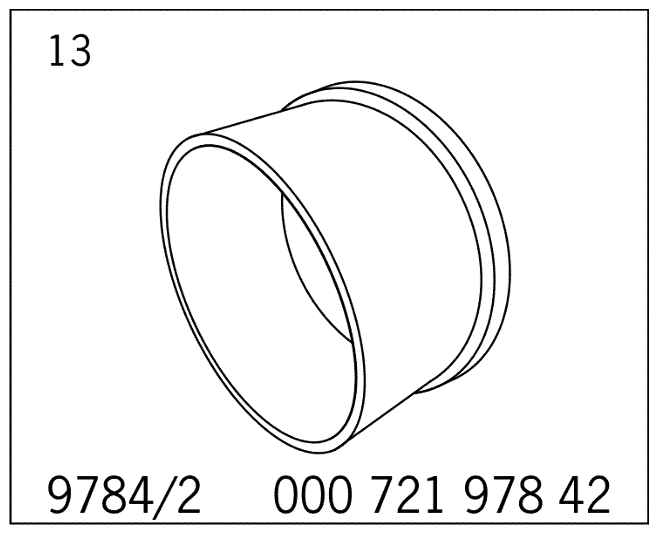

assembly funnel	Special tool	> 9784/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
restraining straps	Special tool	> P221	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

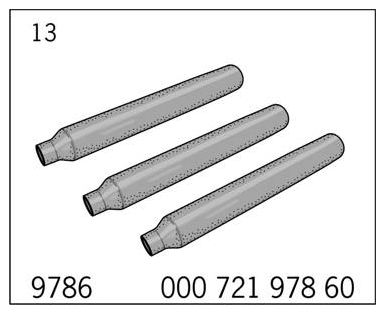

protective sleeve	Special tool	> 9786	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

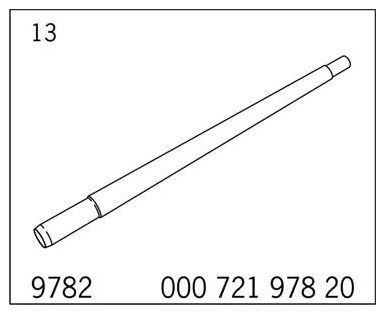

centring mandrel	Special tool	> 9782	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

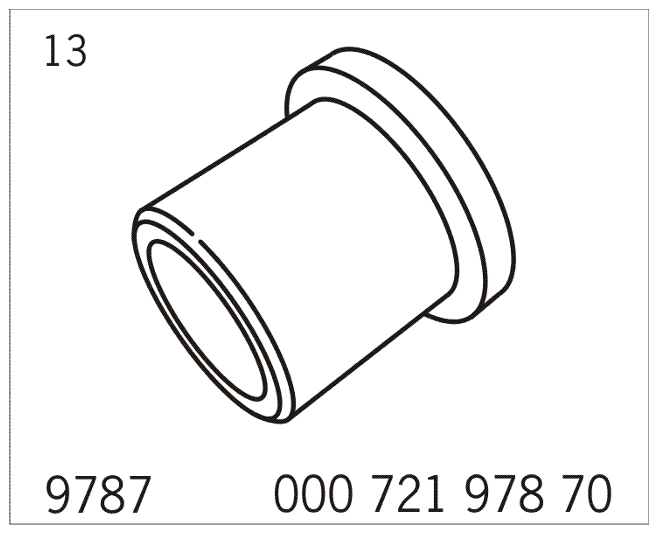

Piston assembly aid	Special tool	> 9787	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
assembly aid	Special tool	> 9598	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
