Removing Crankcase Half For Cylinders 1-3

WARNING: This page is about a different variant/trim than selected.

WARNING: Preloaded or pressurized components

Risk of eye injuries
Risk of bruising
→ Wear personal protective gear.

→ Secure components to prevent them from falling off suddenly.

Remove vibration damper.
> Removing and installing vibration damper .
Remove crankcase half on cylinder bank 1.
Unscrew outer screws -15 to 33- .

Unscrew through bolts -1 to 14- .

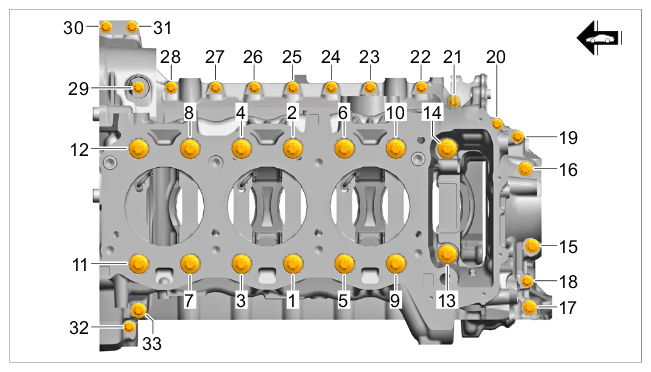

Fig 1: Crankcase Bolts Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening sequence for crankcase

> 9590 - Mounting parts must be unscrewed from threaded joint for crankcase half for cylinder bank 1.

> WM, 1001IN TOOLS FOR REMOVING UNITS AND WORKING ON THE ASSEMBLY SUPPORT
CAUTION:
Hot components
- Risk of burns
  → Let hot components cool down.

  → Wear personal protective gear.
Remove the crankcase half from cylinder bank 1 with the help of another person.
Heat sealant along the joint using > VAS 1978/14A - a hot - air blower .

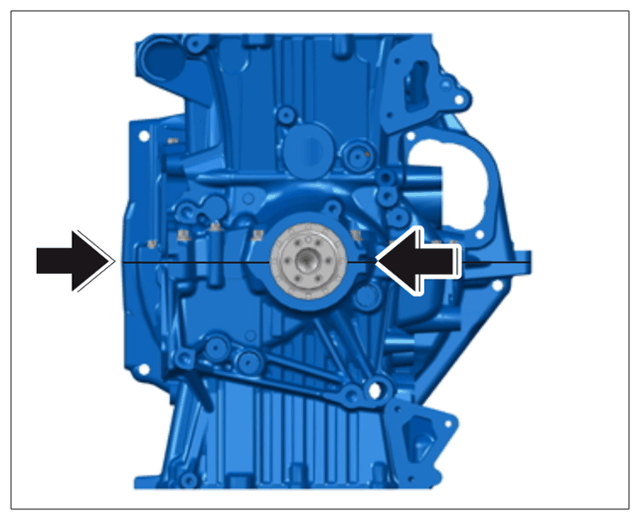

Lift the crankcase half at the marked positions -Arrows- using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lever positions on crankcase

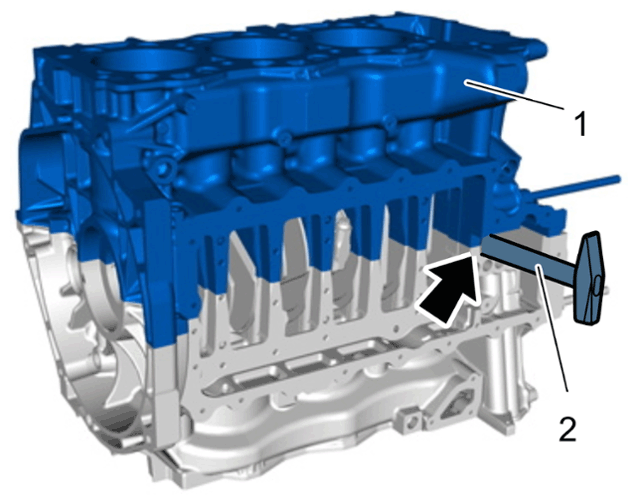

Push in the handle of a hammer above the oil-pump pressure channels -Arrow- (-2- ) and lift off crankcase half -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankcase half
