Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove cylinder heads.

    157019 REMOVING AND INSTALLING CYLINDER HEAD .

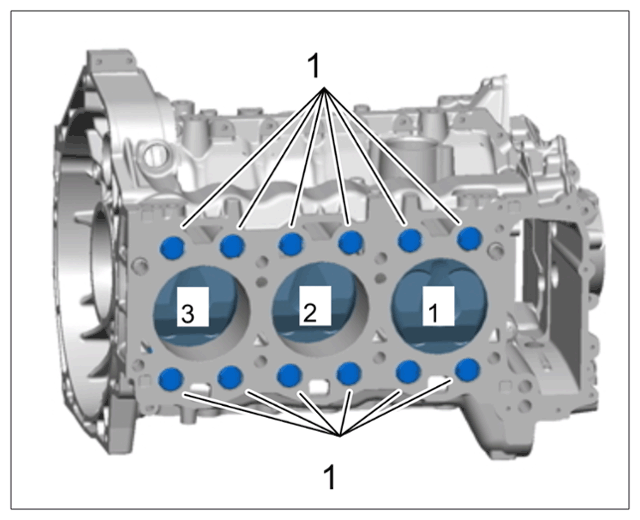

  2. Draw out displacement bodies -1-  on cylinder bank 1.
    G15487272Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Displacement bodies on cylinder bank 1

  3. Remove oil pan (upper part).

    175019 REMOVING AND INSTALLING OIL PAN (UPPER PART) .

  4. Remove oil pump.

    172019 REMOVING AND INSTALLING OIL PUMP .

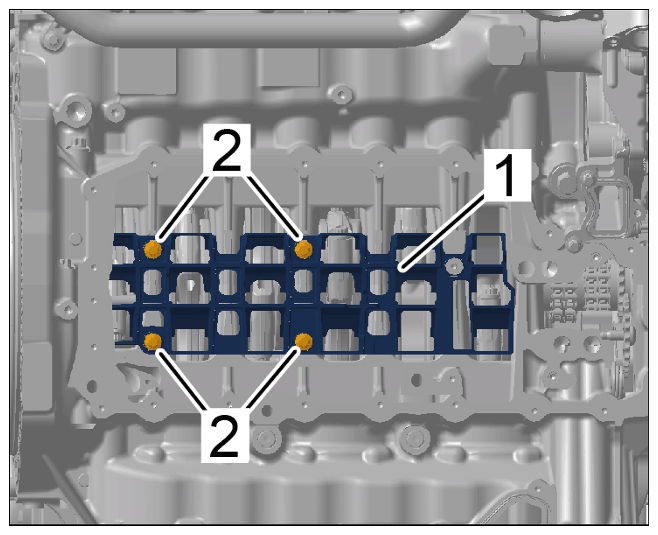

  5. Unscrew oil windage tray screws -2-  and remove oil windage tray -1-  .
    G15487273Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil plate

  6. Turn the engine on the assembly support so that cylinder bank 1 is facing upwards.
