Pre-Assembly Of Pistons And Connecting Rods

Information

• Assign connecting rod cap to the relevant connecting rod immediately after removal.
• Check four-digit matching number.
• Replace connecting rod bolts.
• Replace connecting rod bearings.

Information

• Ensure even weight distribution when installing new pistons or connecting rods.
• Only one weight group is permitted per engine.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

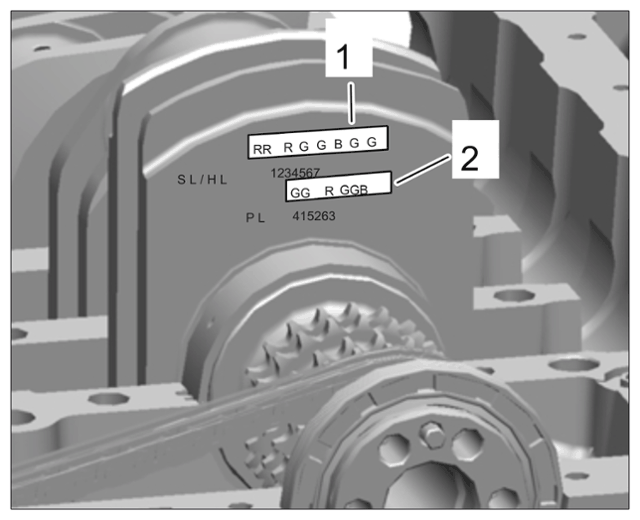

Marking for bearing shell allocation on the crankshaft

• PL marking indicates the bearing shell allocation for the con-rod journal.
• Read off from left to right.
• Fit bearings according to numbering sequence.

1. Allocate connecting-rod bearings based on the marking on the crankshaft.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

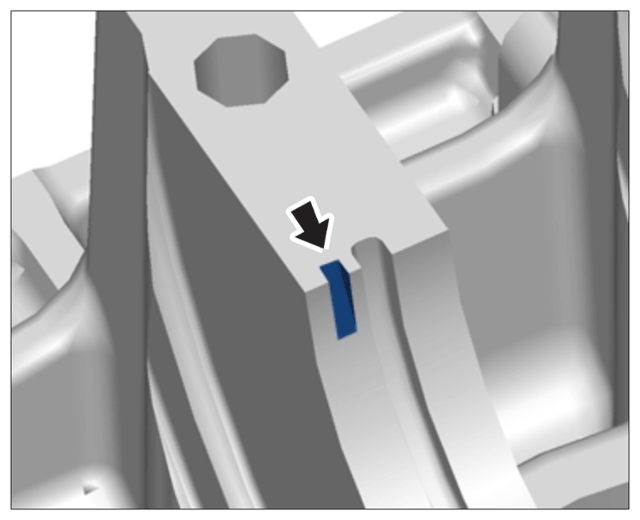

   Retaining lugs for connecting rod bearings

   Read off the bearing shell color from the series of letters.

   Insert new con-rod bearing shells in the connecting rod cap and connecting rod and grease with Optimol Optipit (Part No. 000.043.204.17).

   Check that the retaining lugs -Arrow-  are seated correctly.

   Secure connecting rod cap with relevant connecting rod and new screws by hand.

   Information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

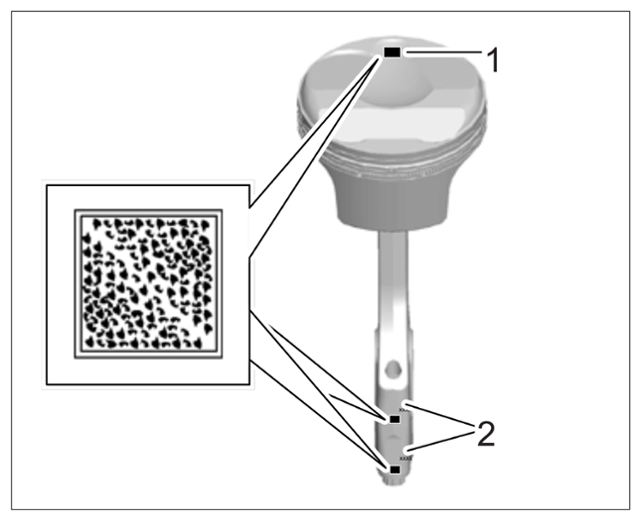

   Markings on connecting rods and pistons

   • The matching number -2- and data matrix code -inset- on the correctly installed connecting rod must be facing the exhaust side.
   • The cone-shaped neck and data matrix code -1- on the piston must be facing the intake side.
   • The positions of the listed markings also apply to pistons and connecting rods on cylinders 1 to 3.
   • The pistons for cylinders 1 to 3 are pre-assembled without connecting rods.
2. Fit pistons and connecting rods for cylinders 4 - 6.
3. Insert connecting rod -1-  with piston or only the piston into the > 9778 - retaining device-2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

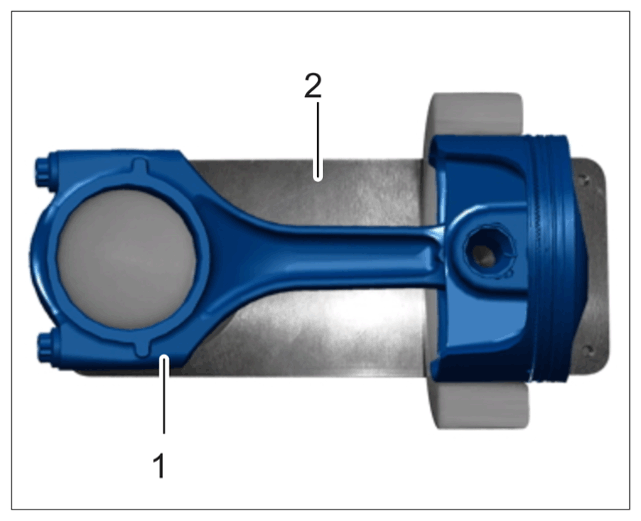

   Piston/connecting rod in retaining device

4. Pull off piston receiving element and fit > 9778/1 - piston receiving element  .
   WARNING: Preloaded or pressurized components

   • Risk of eye injuries
   • Risk of bruising

     → Wear personal protective gear.

     → Secure components to prevent them from falling off suddenly.

5. Install piston-pin circlip -1-  towards the flywheel side using > 9776 - assembly tool  . The hook on the retaining ring must be at 12 o'clock position (when the engine is vertical).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

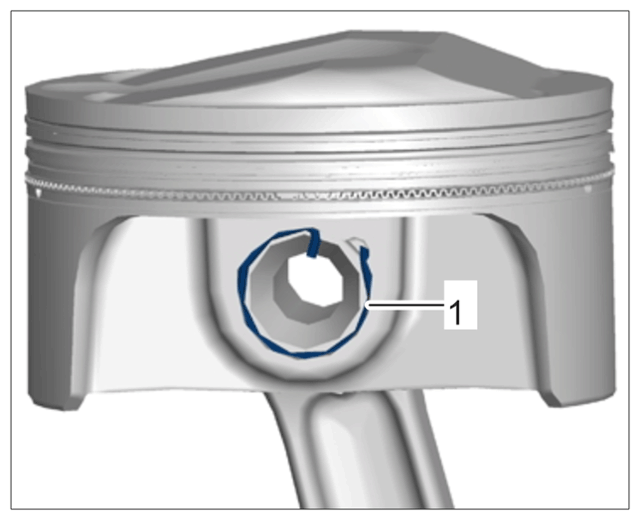

   Circlip on the flywheel side

6. Turn piston and connecting rod by 180° and install circlip -1-  towards the belt side using > 9776 - assembly tool  .

   Coat piston pin with new engine oil and press it into the relevant piston/connecting rod assembly.

   Turn the groove for the small hook on the tool -2-  towards the observer.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

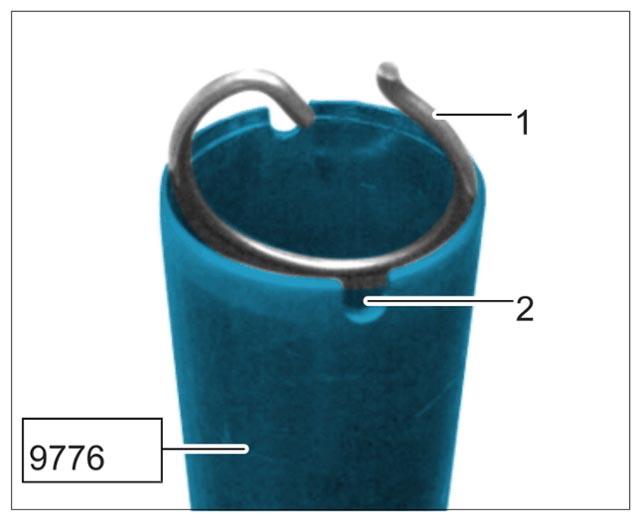

   Piston-pin circlip in assembly tool

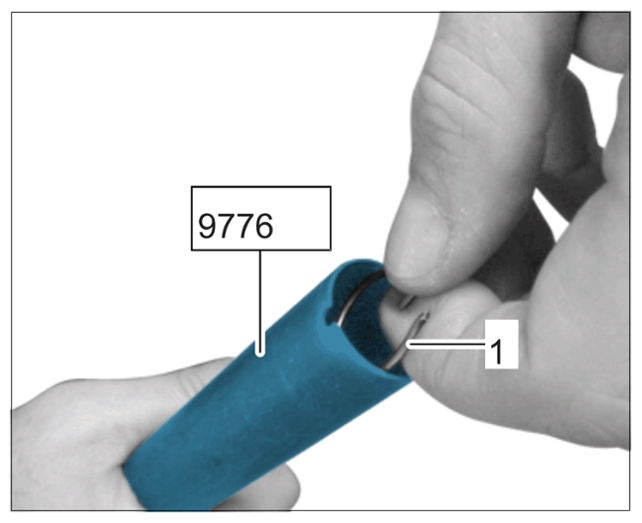

   Press the edges together and push the new circlip -1-  into > 9776 - the assembly tool  .

   Turn the small hook towards the groove -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

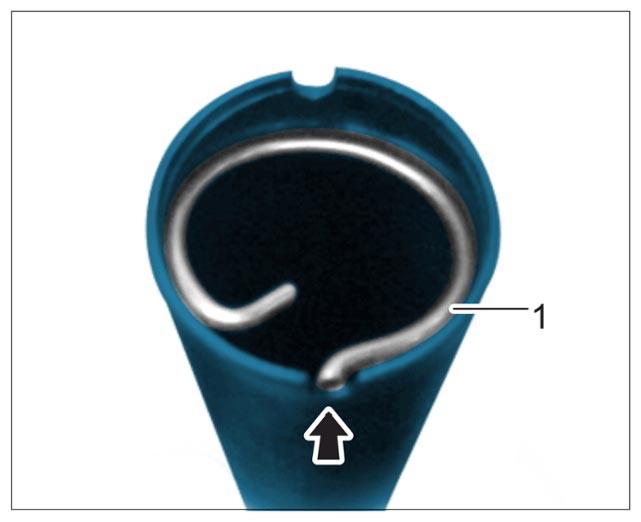

   Small hook facing groove

   Turn the circlip -1-  as required.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Piston-pin circlip in tool

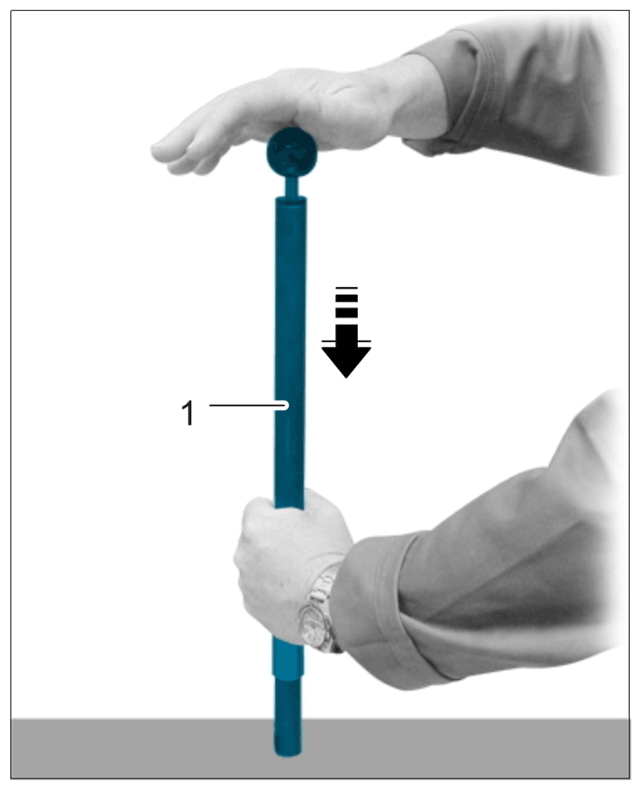

   Pull back and hold push rod in tool. Place the pipe -1-  on a hard surface.

   Slowly guide the push rod down and press the circlip into installation position until you hear a distinct noise.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Circlip in assembly position

   Information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

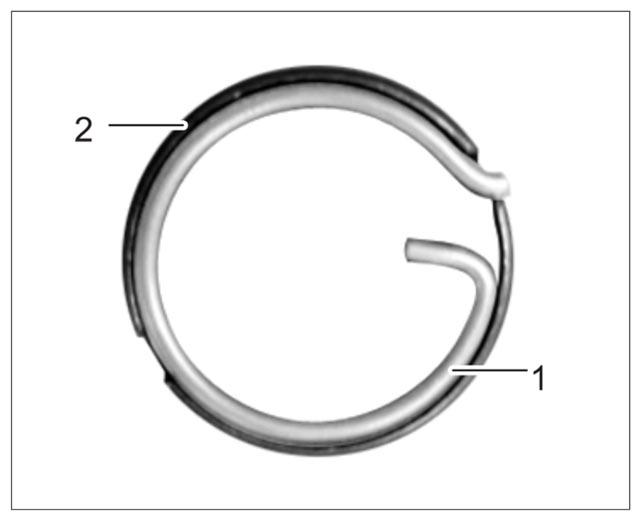

   Circlip position viewed from the piston (towards belt side)

   • View of piston on circlip -1- in assembly tool.
7. > 9776 - Assembly tool  must be positioned on the piston in such a way that the small hook is lying in the half-moon-shaped bore -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

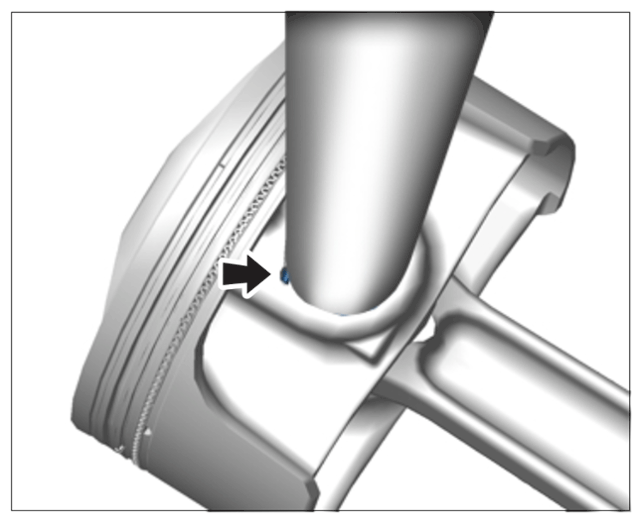

   Tool 9776 at assembly groove on piston

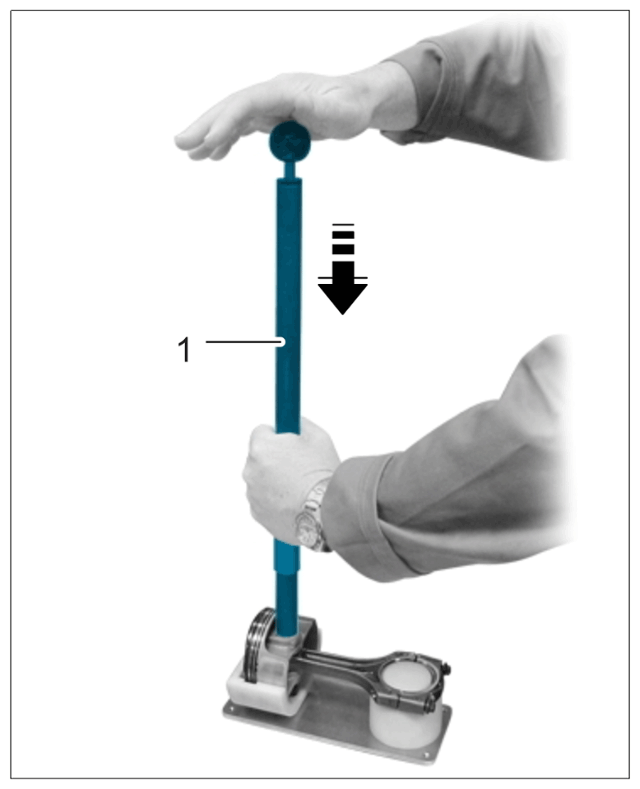

   Tap the push rod of the assembly tool -1-  lightly towards the piston with the ball of your hand -Arrow-  until the circlip engages.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Circlip on piston

   Check the position of the hook -2-  on the circlip -1-  . The hook -2-  must be at about 9 o'clock position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

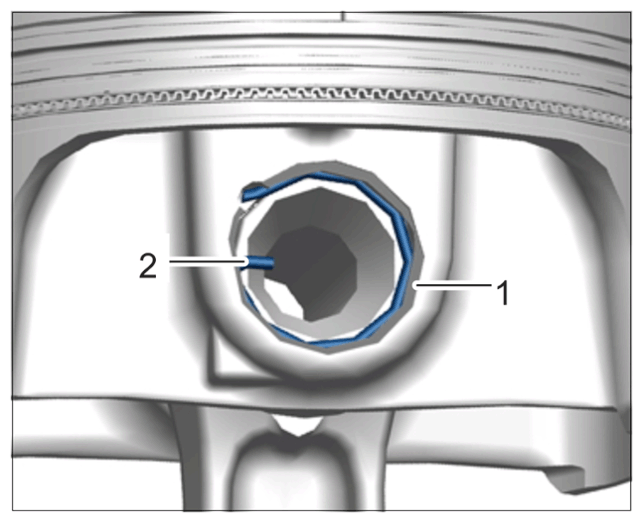

   Retaining ring on piston (view on belt side)

8. Remove piston and connecting rod from > 9778 - retaining device  .
