Pre-Assembly Of Crankcase Halves

WARNING: This page is about a different variant/trim than selected.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Information

Overview of bearing shell allocation:

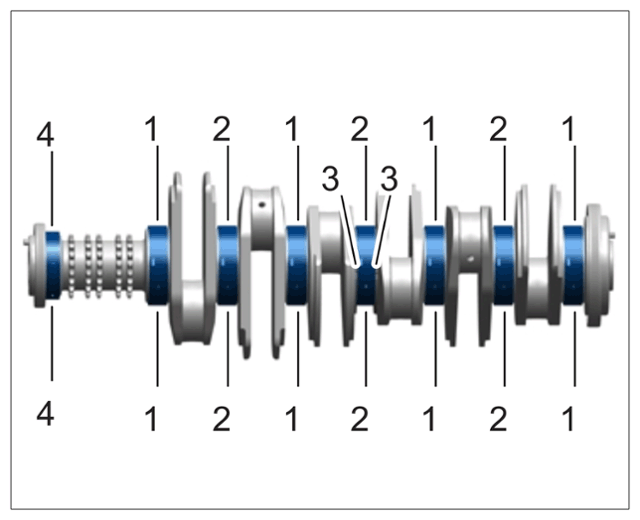

Fig 1: Bearing Shell Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bearing shell allocation

1	Main bearing shells - red, yellow, blue
2	Partial-groove bearing shells - red, yellow, blue
3	Thrust washers
4	Supporting mount shells - red, yellow, blue

Fit crankcase half cylinder bank 2 on the engine assembly support using > 9590 - mounting parts and > 9771 - engine adapter .

> WM, 1001IN TOOLS FOR REMOVING UNITS AND WORKING ON THE ASSEMBLY SUPPORT .

Information

Crankcase half, cylinders 4 to 6:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

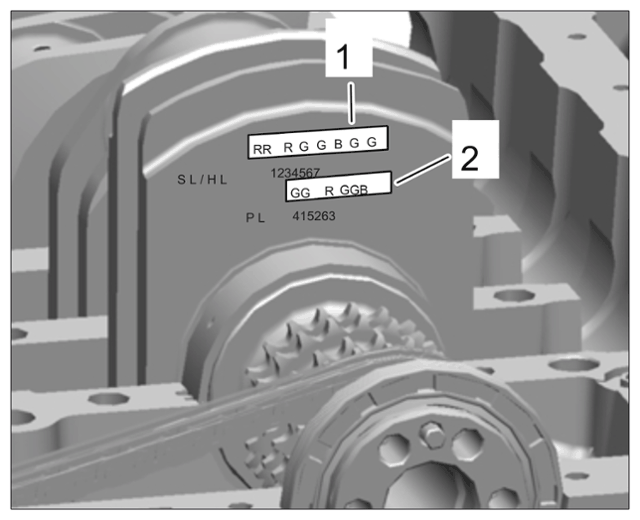

Marking for bearing shell allocation on crankshaft

1	Series of letters at the top, supporting mount shells and main bearing shells
2	Series of letters on connecting-rod bearing shells
SL	Supporting mount
HL	Main bearing
PL	Connecting-rod bearing
R	Bearing shell, Red
G	Bearing shell, Yellow
B	Bearing shell, Blue

Markings are on the crankshaft.
The upper series of letters -1- is for the crankcase. Allocation starts at the supporting mount -SL- on the belt side.
Read off from left to right.
The supporting mount -SL- does not have a number, while the main bearings -HL- are numbered -1 to 7- (number 7 is at the flywheel side).

Information

Bearing shells must be allocated according to specifications.
Observe differentiation between partial-groove bearings and smooth bearings.
Coat new bearing shells with new engine oil.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

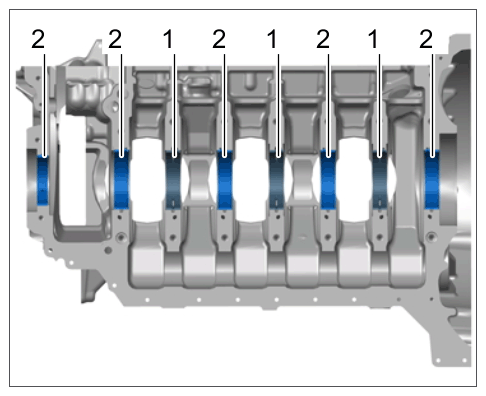

Bearing shells fitted on crankcase

1	Partial-groove bearing shell (cylinders 2, 4 and 6)
2	Smooth bearing shell

There are different types of bearing shells (see bearing shell allocation)

Fit new bearing shells on crankcase half 4-6.

Grease two thrust washers -1- with Optimol Optipit (Part No. 000.043.204.17) and fit them on main bearing 4.

Oil guide grooves must be on the outside!

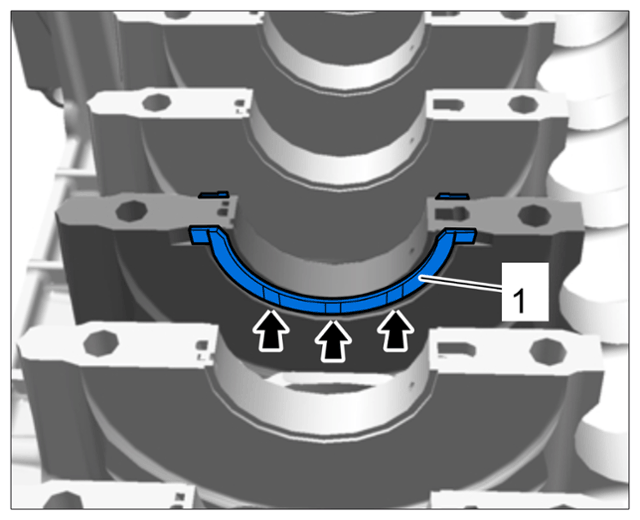

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position of grooves on thrust washer

Information

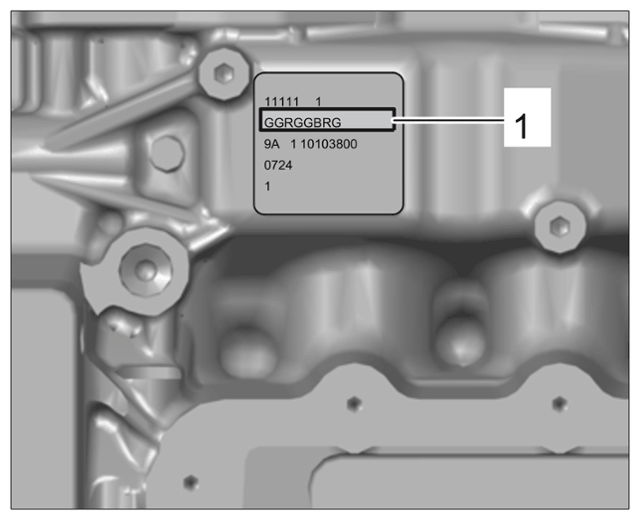

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Marking on crankcase half for cylinders 1 to 3

G	Bearing shell, Yellow
R	Bearing shell, Red
B	Bearing shell, Blue

Marking -1- on crankcase half for cylinders 1 to 3. Allocation starts at the flywheel side. Read off series of letters from left to right.

Information

Bearing shells must be allocated according to specifications.
Observe differentiation between partial-groove bearings and smooth bearings.
Coat new bearing shells with new engine oil.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bearing shells fitted on crankcase

1	Partial-groove bearing shell (cylinders 2, 4 and 6)
2	Smooth bearing shell

There are different types of bearing shells (see bearing shell allocation)

Fit new bearing shells on the crankcase half of cylinder bank 1.
Install tensioning rail -1- with a long -2- bearing pin in the crankcase half.
Fit spacer sleeve.

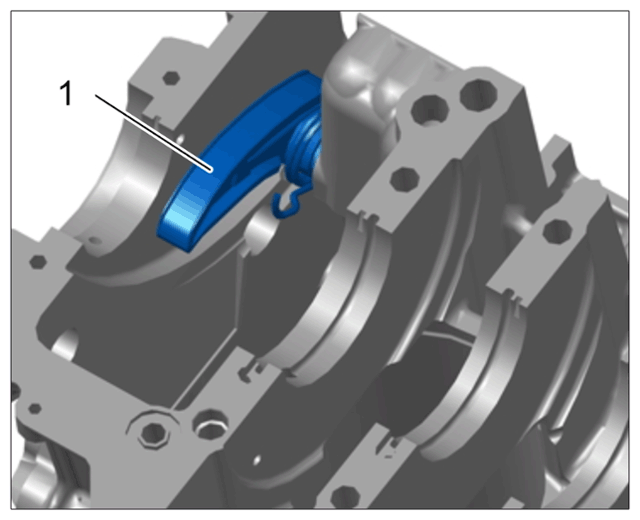

Insert tensioning rail -1- in crankcase half 4-6.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tensioning rail for oil-pump drive in crankcase

Secure tensioning rail in the crankcase using a long bearing pin -2- .

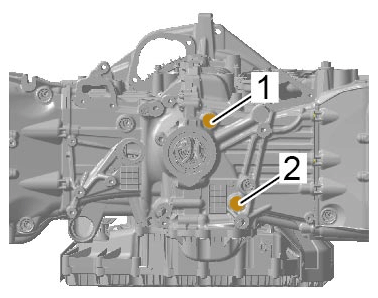

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bearing pin
Insert guide rail for crankcase half, cylinder bank 2 and fix in place in the crankcase using a long bearing pin -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bearing pin
Fit tensioning spring -2- on tensioning rail -1- into the cut-out in the guide rail -3- .

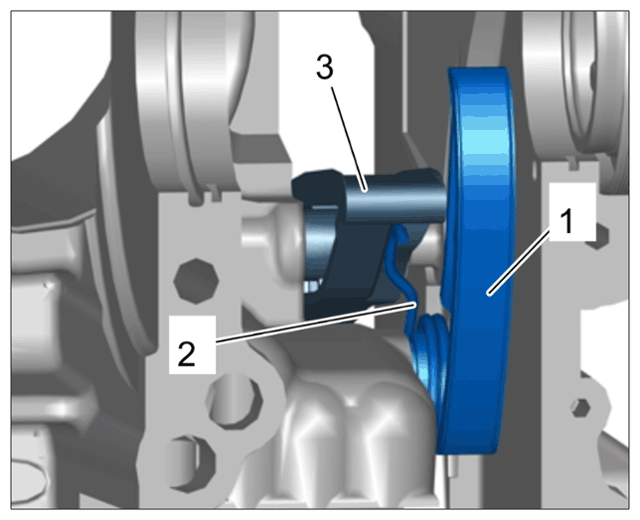

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position of tensioning spring in guide rail
Tighten bearing pins on guide and tensioning rails.
> Tightening torque 10 Nm (7.5 ftlb.)
Insert crankshaft with timing chains -2 and 3- and engage oil pump gear -1- in the drive chain.
Guide timing chains with your hand when turning the crankshaft so that they do not get stuck in the crankcase.

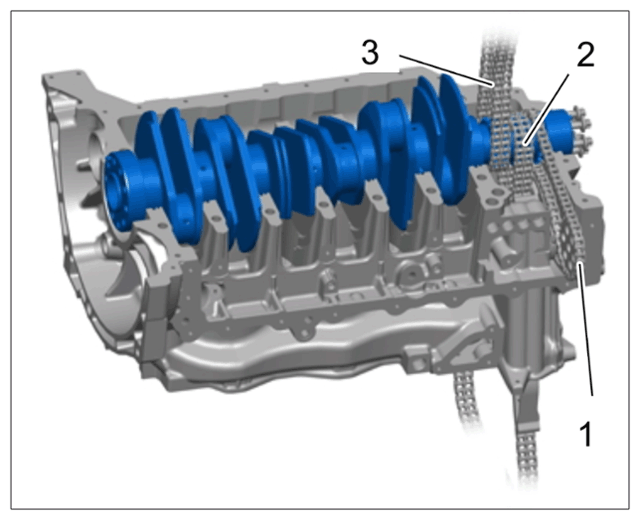

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankshaft in crankcase half 4-6

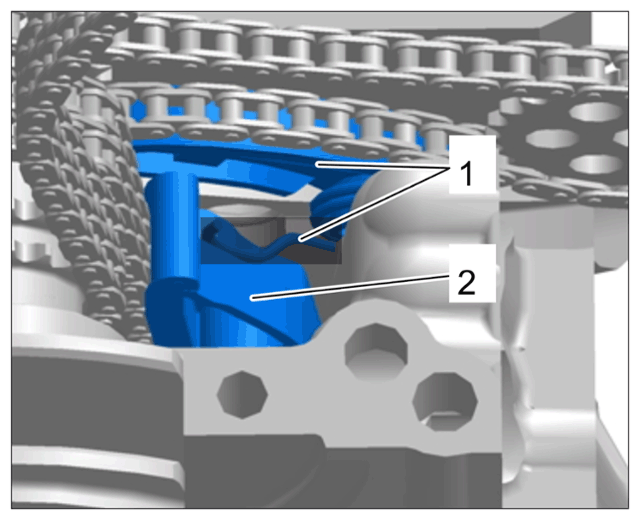

Check installation position of tensioning spring on tensioning rail -1- for the oil-pump drive chain and guide rail -2- again.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tensioning rail for oil-pump drive chain and guide rail

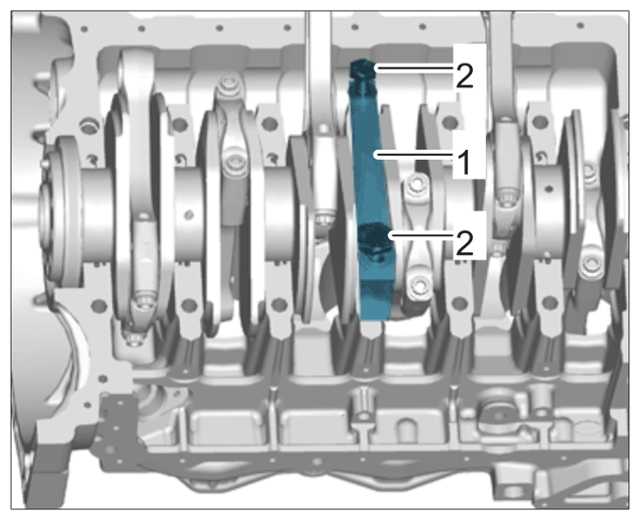

Insert crankshaft with > 9779 - retaining bridge-1- and screw -2- in screws as far as they will go by hand.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holding bridge 9779 for crankshaft
