Install Anti-Roll-Bar Mount

Information

Contact surfaces of the anti-roll bar, anti-roll bar clamps and anti-roll-bar bearings must be clean, dry and free from grease.

1. Clean the anti-roll bar and anti-roll bar clamps.

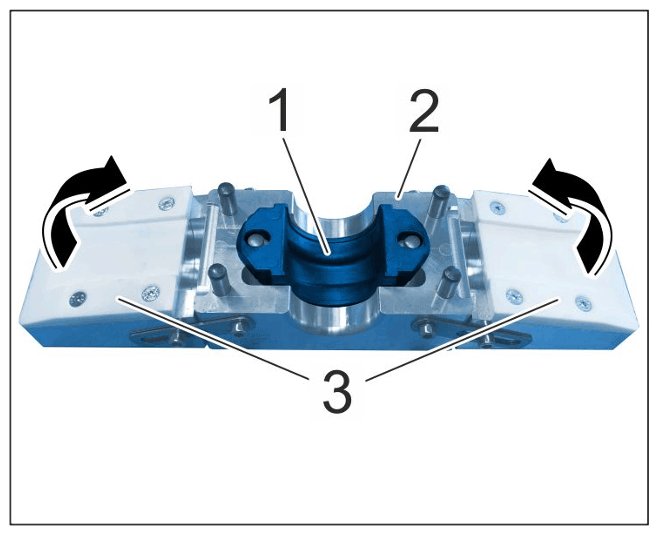

2. Insert anti-roll bar clamp -1-  in > 9949 - assembly fixture-2-  and fold up insertion guides -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Anti-roll bar clamp in the assembly fixture

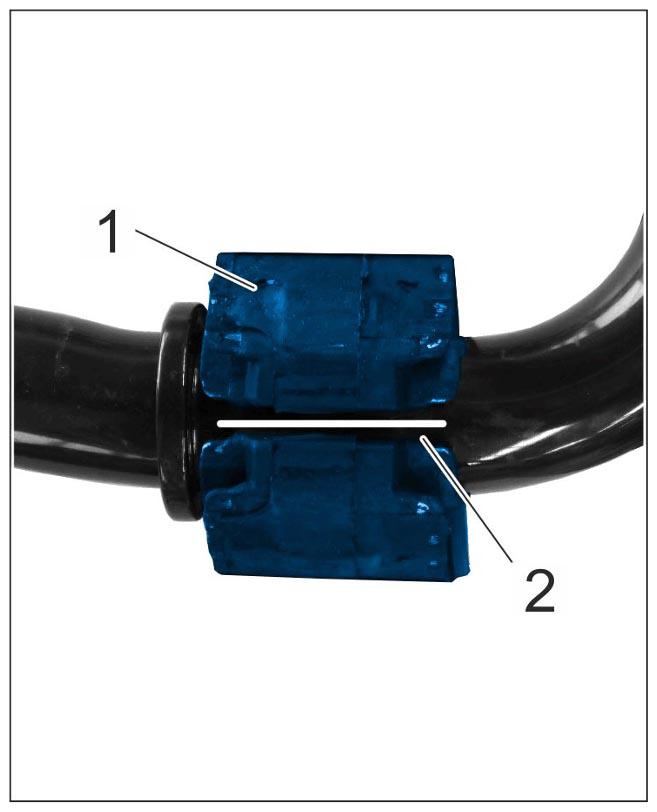

3. Place the anti-roll-bar bearing -1-  on the anti-roll bar and align it in accordance with the marking -2-  (markings are already in place on the new part).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking for anti-roll-bar bearing (example)

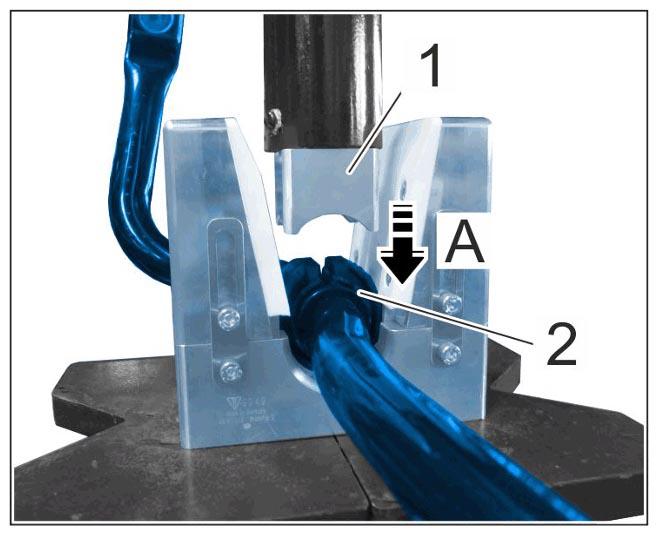

4. Press the anti-roll-bar bearing with > VAS 6654 - workshop press  into the anti-roll bar clamp.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Press in the anti-roll-bar bearing

   1. 4.1 Insert the ram -1-  (included in the scope of delivery of the assembly fixture) into the workshop press.
   2. 4.2 Insert anti-roll bar with anti-roll-bar bearing -2-  into > 9949 - assembly fixture  . The opening of the anti-roll-bar bearing must point straight up.
   3. 4.3 Press anti-roll-bar bearing as far as possible into the assembly fixture by hand.
   4. 4.4 Align the ram -1-  according to the contours of the anti-roll-bar bearing.
   5. 4.5 Press in the anti-roll-bar bearing into the anti-roll bar clamp as far as it will go (without increasing pressure) -arrow A-  .
5. Remove anti-roll bar with pressed-in anti-roll-bar bearing from assembly fixture and repeat steps  2 to  4 on the other side.
