Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

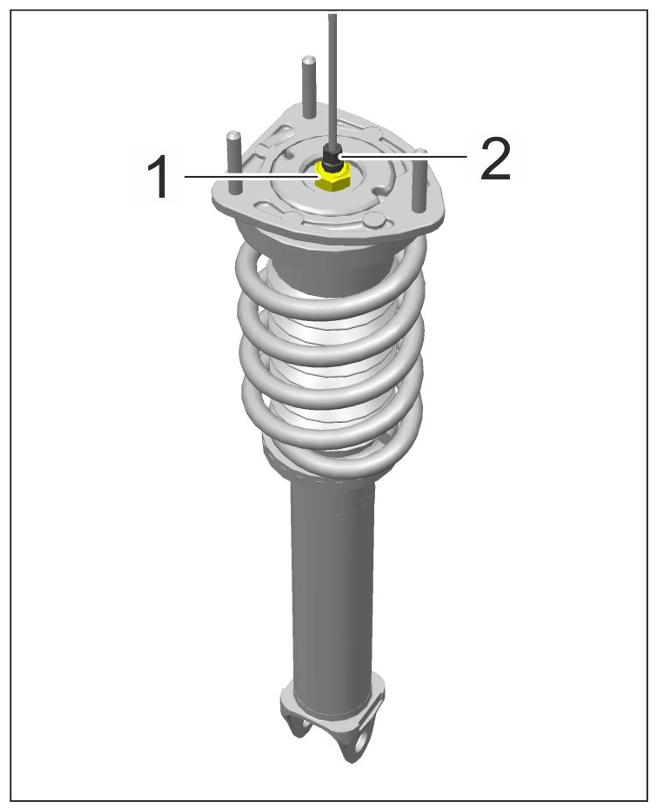

| Supporting mount to piston rod |
Item 1: Lock nut, M12 x 1 |
Tightening torque |
35 Nm (25.8 ftlb.) |
+ 2 Nm (1.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spring strut, rear |
