Component Overview

WARNING: This page is about a different variant/trim than selected.

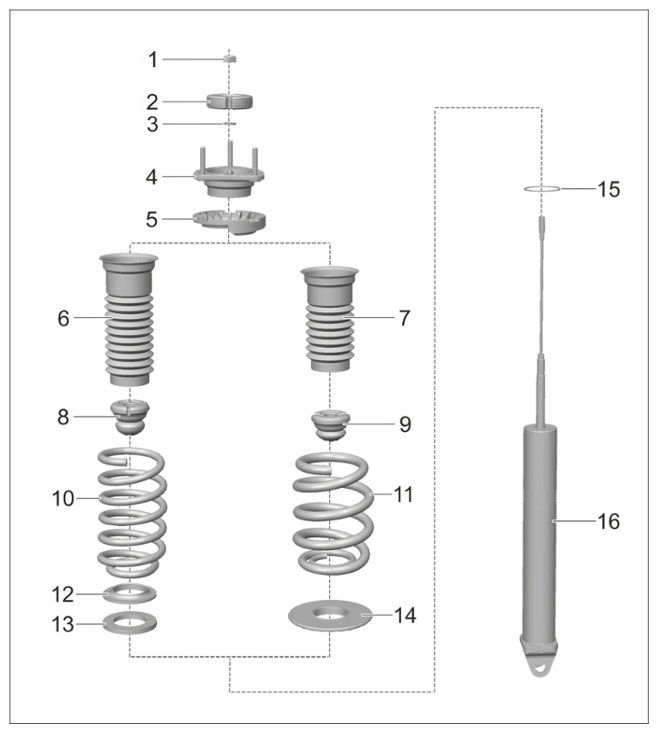

Fig 1: Overview Of Rear Spring Strut Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of rear spring strut

1	Hexagon nut, M12 (always replace following removal)
2	Insert
3	Washer
4	Supporting mount
5	Upper spring plate
6	Bellows (vehicles with standard chassis)
7	Bellows (vehicles with sports chassis -10 mm)
8	Rubber stop (vehicles with standard chassis)
9	Rubber stop (vehicles with sports chassis -10 mm)
10	Coil spring (vehicles with standard chassis)
11	Coil spring (vehicles with sports chassis -10 mm)
12	Lower spring plate (vehicles with standard chassis)
13	Concave washer (vehicles with standard chassis)
14	Concave washer (vehicles with sports chassis -10 mm)
15	Circlip
16	Vibration damper
