Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic values | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Lower trailing arm to wheel bearing housing | Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal | Initial tightening | 70 Nm (51.6 ftlb.) | ||
| Lower trailing arm to wheel bearing housing | Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal | Final tightening | + 180° | ||
| Spring strut mount to body | Item 2: Hexagon nut, M8 | Tightening torque | 30 Nm (22.1 ftlb.) | ||
|

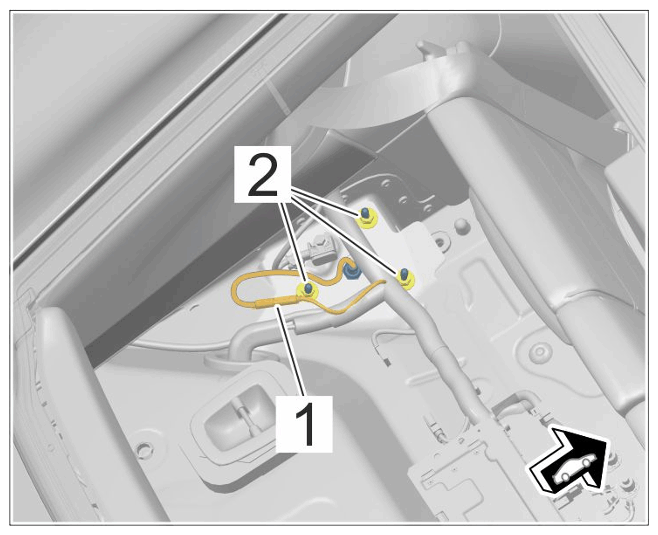

Mounting for rear spring strut on body |
|||||
| Spring strut to wheel bearing housing | Item 2: Cheese head bolt M12 x 1.5 | Tightening torque | 110 Nm (81.1 ftlb.) | ||
|

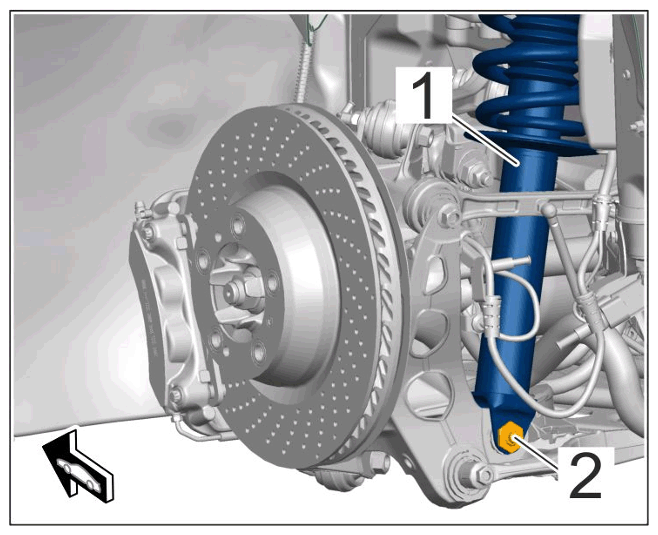

Mounting for spring strut, rear on wheel bearing housing |
|||||
