Removing Rear Spring Strut

WARNING: This page is about a different variant/trim than selected.

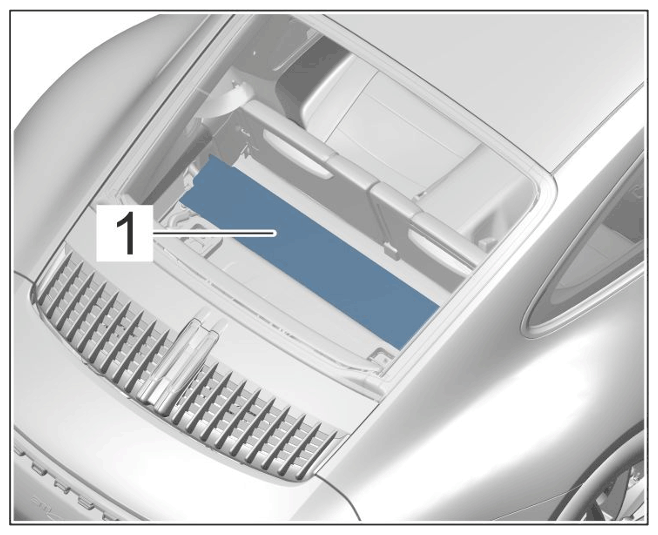

  1. Remove foam -1-  .
    G15523387Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Foam

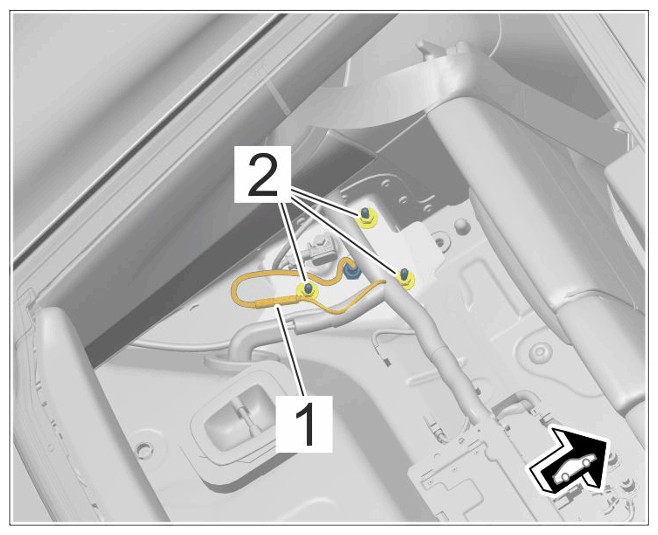

  2. Remove rear spring strut from the body.
    G15523388Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear spring strut on body

    1. 2.1 Release and unplug electric plug connection -1-  .
    2. 2.2 Unscrew nuts -2-  .
  3. Remove trailing arm -1-  from wheel bearing housing.
    G15523389Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm

    1. 3.1 Loosen threaded joint securing trailing arm to wheel bearing housing -2-  .

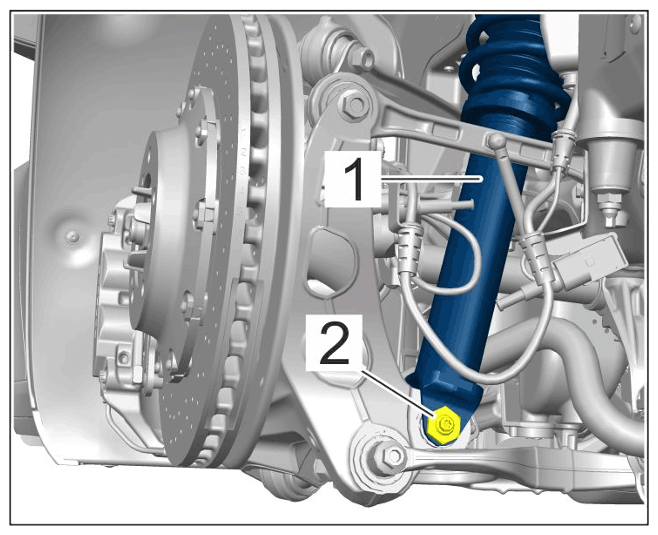

  4. Remove rear spring strut -1-  from the wheel bearing housing.
    G15523390Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear spring strut on wheel bearing housing

    1. 4.1 Loosen threaded joint -2-  .
  5. Remove rear spring strut by pulling it downwards.
