Removing Rear-Axle Carrier Side Section
WARNING: This page is about a different variant/trim than selected.
- Release the parking brake.
- Change into neutral gear.
- Remove the drive shaft -1-
from the transmission flange.

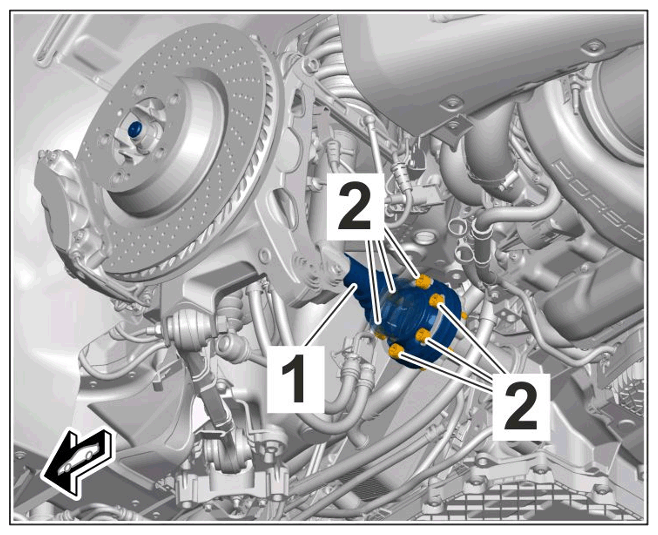

Mounting for drive shaft on transmission flange
- 3.1 Unscrew screws -2-
and remove plates (turn the drive shaft in order to access the screws).
Information
Make sure that the drive shaft does not hang down as this may damage the joint.
- 3.2 Suspend drive shaft on the spring strut.
- 3.1 Unscrew screws -2-
and remove plates (turn the drive shaft in order to access the screws).
- Remove holder for angle sensor for headlight beam adjustment -1-
from the rear-axle carrier side section.

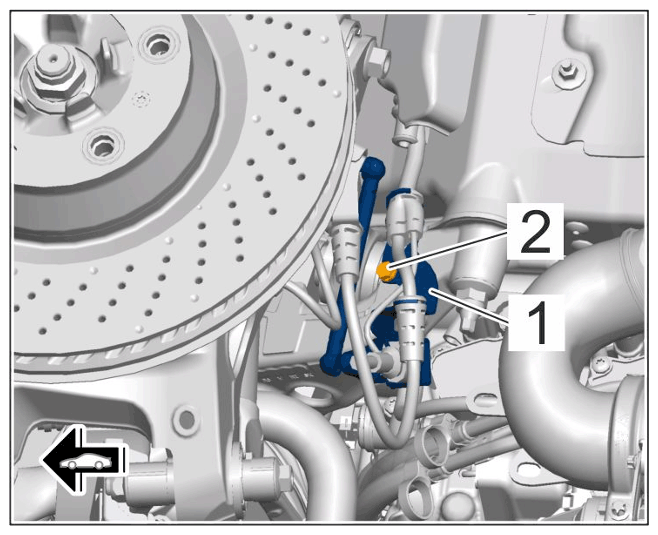

Holder for angle sensor for headlight beam adjustment
- 4.1 Unscrew screw -2- and remove holder for angle sensor for headlight beam adjustment.
- Only for vehicles with rear axle steering:
Disconnect wire harness for rear axle steering -1-
from the holder -2-
.

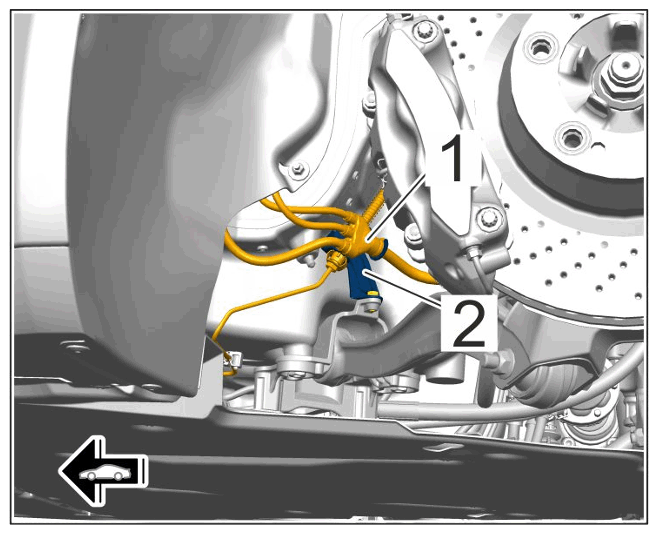

Wire harness for rear axle steering
- Loosen mounting for tie rod/servo motor for rear axle steering -1-
on rear-axle carrier side section.

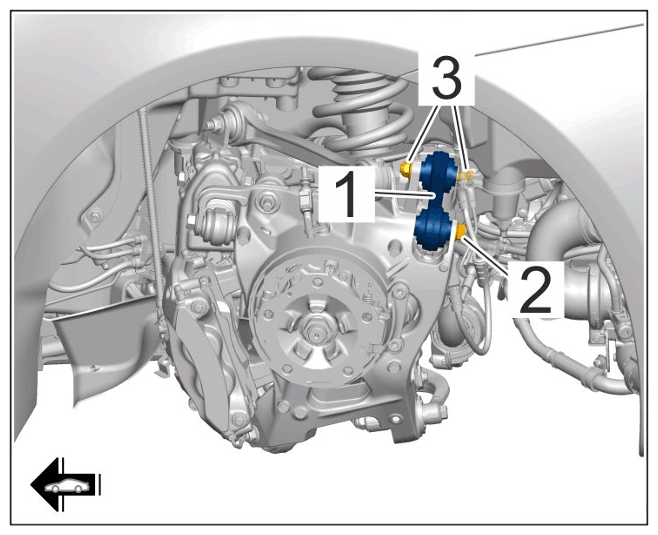

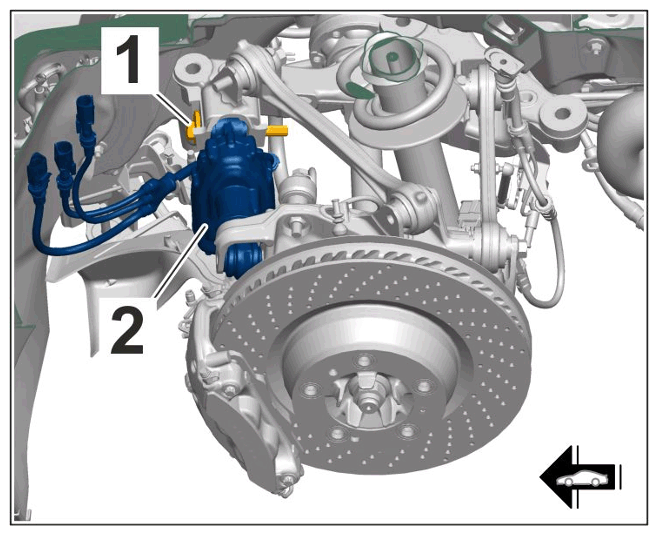

Mounting for tie rod on rear-axle carrier side section

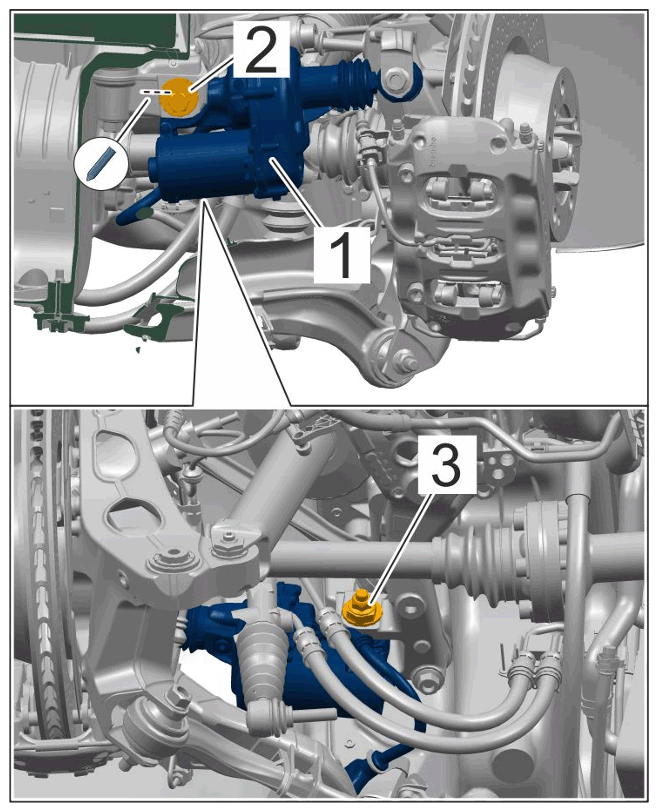

Mounting for servo motor for rear axle steering on rear-axle carrier side section
- 6.1 Mark eccentric position -2- for installation.
- 6.2 Unscrew nut -3- . (Screw -2- remains screwed in).
- Loosen threaded joint -3-
securing upper control arm (front) to rear-axle carrier side section.

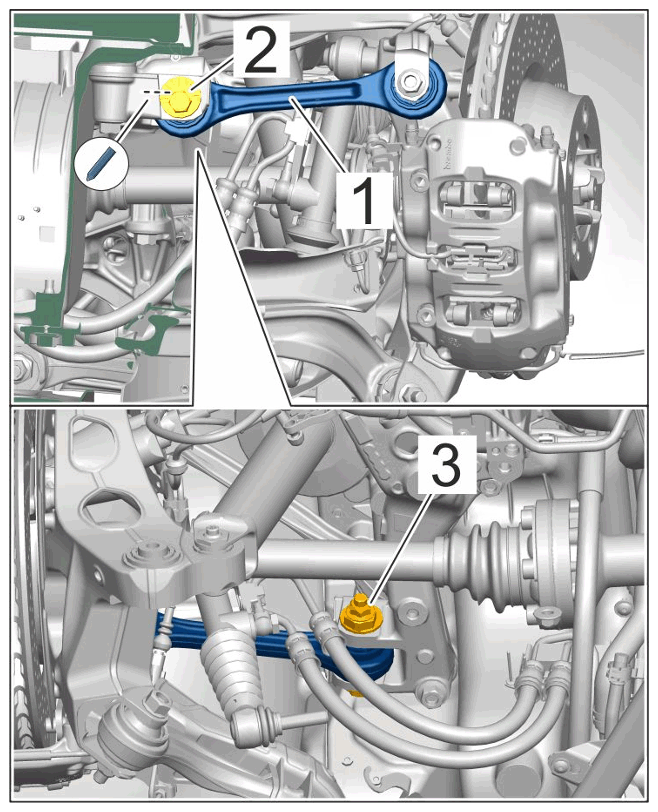

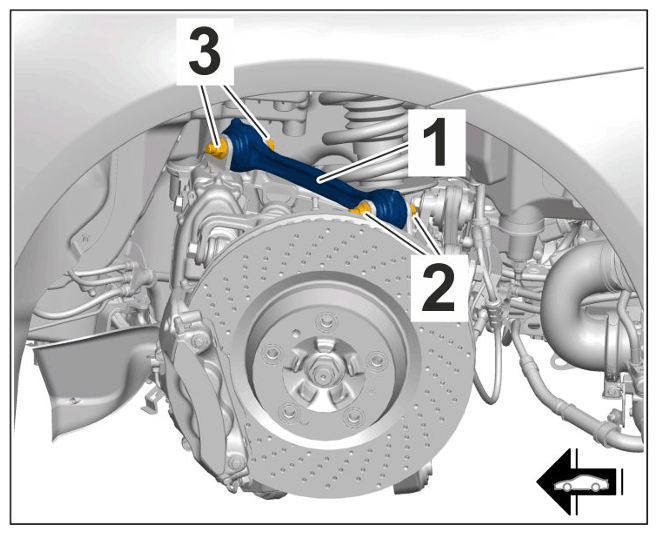

Mounting for upper control arm (front)
- 7.1 Unscrew nut. (Screw remains screwed in).
- Remove upper control arm (rear) -1-
from the rear-axle carrier side section.

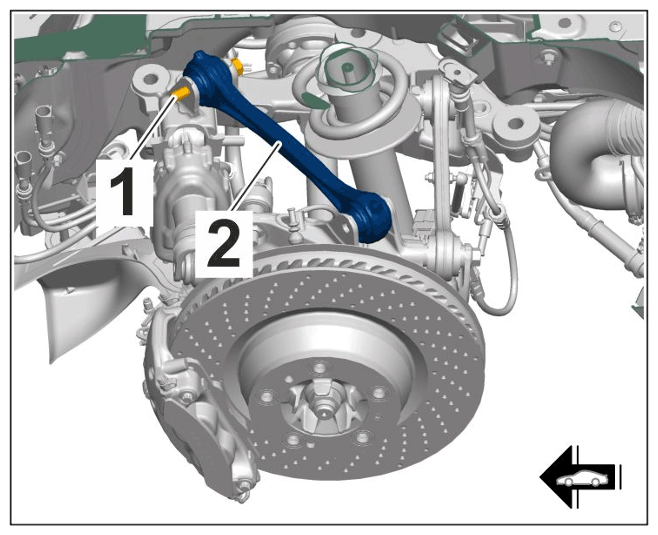

Mounting for upper control arm (rear)
- 8.1 Loosen threaded joint -3- on the rear-axle carrier side section.
- Tilt wheel suspension outwards at the top so that the screws can be removed from the tie rod/servo motor for rear axle steering and upper control arm (front) (the help of another person is required).
- 9.1 Unscrew screws -2- from the rear-axle carrier side section -1- .
- 9.2 Unscrew nut -3-
from the rear-axle carrier side section -1-
.

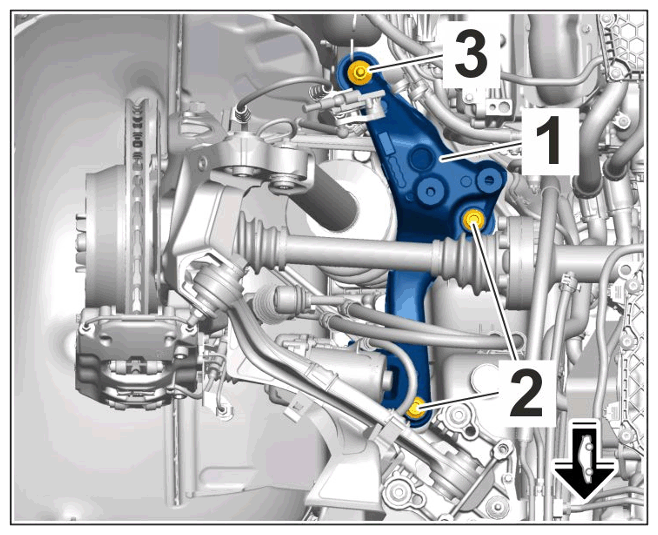

Mounting for rear-axle carrier side section
- 9.3 Carefully tilt wheel suspension outwards as far as required at the top -arrow A- so that the screw on the tie rod/servo motor for rear axle steering -1- and upper control arm (front) -2- can be removed.

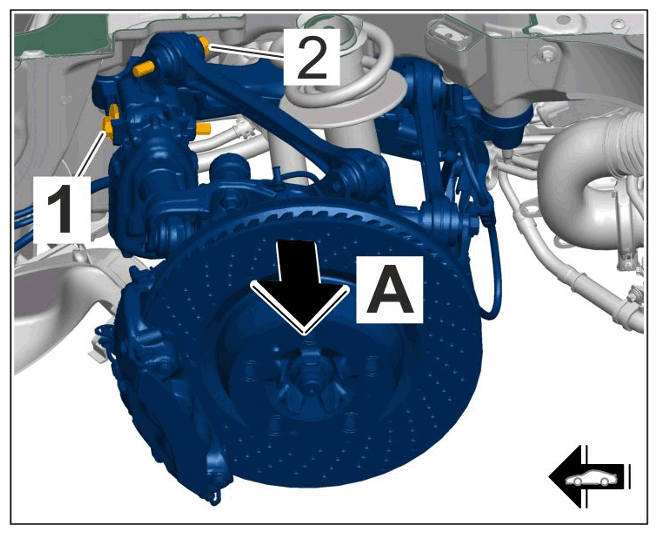

Tilting rear-axle carrier side section outwards
- Remove rear-axle carrier side section (the help of another person is required).
- 10.1 Remove screw -1-
from tie rod/servo motor for rear axle steering -2-
.

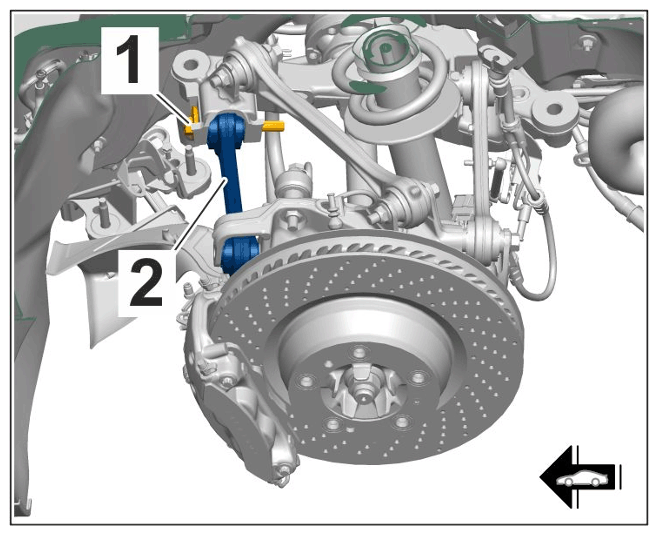

Mounting for tie rod on rear-axle carrier side section
Mounting for servo motor for rear axle steering on the rear-axle carrier side section
- 10.2 Remove screw -1-
from upper control arm (front) -2-
.
Mounting for upper control arm (front) on rear-axle carrier side section
- 10.3 Remove rear-axle carrier side section and secure wheel suspension at a suitable place (e.g. spring strut) to prevent it from tilting.
- 10.1 Remove screw -1-
from tie rod/servo motor for rear axle steering -2-
.
