Removing Control Arm

Information

Control arm -1-  is removed together with the bracket -2-  and brake disc air guide -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

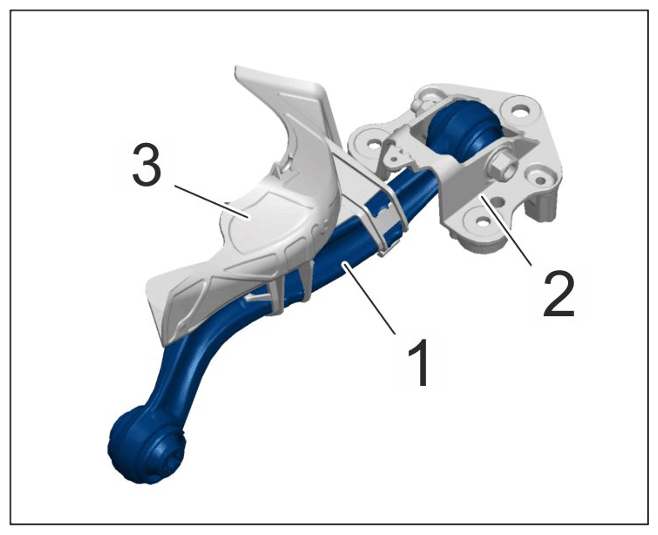

Control arm with bracket and brake disc air guide

1. Remove trailing arm -1-  from the wheel bearing housing and turn it down.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

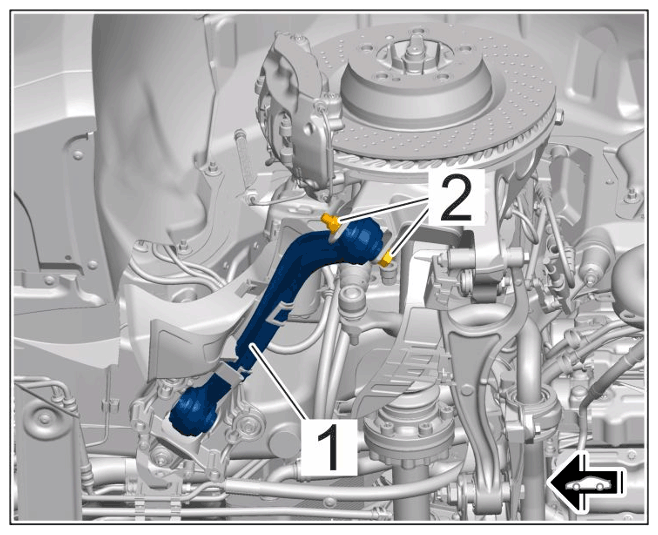

   Mounting for trailing arm

   1. 1.1 Loosen threaded joint -2-  .
2. Remove control arm -1-  from the wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for control arm on wheel bearing housing

   1. 2.1 Loosen threaded joint -2-  .
3. Remove bracket -5-  from the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

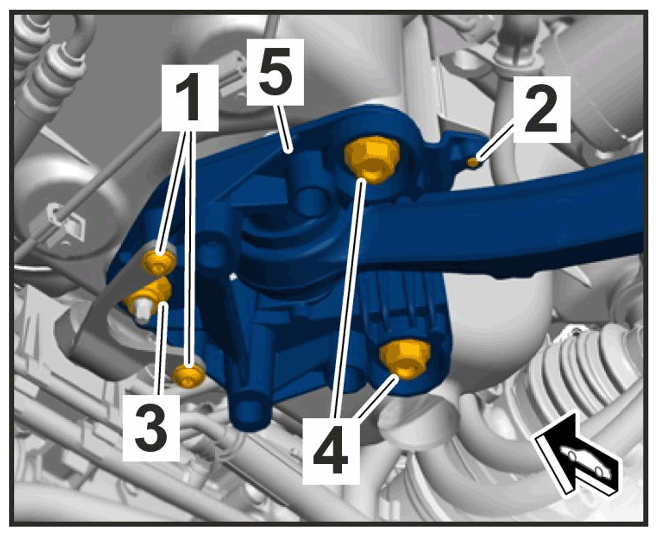

   Mounting for bracket

   1. 3.1 Only for vehicles with PDCC:  Unscrew screws -1-  for bracket for PDCC lines.
   2. 3.2 Unscrew screw -2-  for bracket for brake line and rear axle steering line.
   3. 3.3 Screw off nut -3-  .
   4. 3.4 Unscrew and remove screws -4-  .
