Removing Upper Control Arm (Rear)

WARNING: This page is about a different variant/trim than selected.

Detach angle sensor for headlight beam adjustment -1- from the upper control arm (rear).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Angle sensor for headlight beam adjustment to upper control arm (rear)
1. 1.1 Unscrew nut -2- and counter at the joint bolt.
Remove upper control arm (rear) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

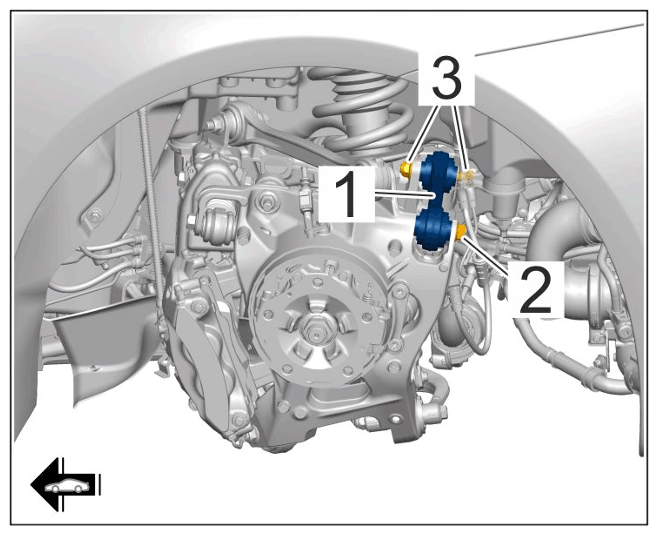

Upper control arm (rear)
1. 2.1 Unscrew screw -2- on the wheel bearing housing.
2. 2.2 Remove screw -3- for rear-axle carrier side section, counter nut -3- when doing so.
3. 2.3 Remove upper control arm (rear) -1- .
