Technical Values
WARNING: This page is about a different variant/trim than selected.
| * Location | * Description | * Type | * Basic values | * Tolerance 1 | * Tolerance 2 |
|---|---|---|---|---|---|
| Lower trailing arm to wheel bearing housing | Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal | Initial tightening | 70 Nm (51.6 ftlb.) | ||
| Lower trailing arm to wheel bearing housing | Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal | Final tightening | + 180° | ||
| Control arm to wheel bearing housing | Hexagon-head bolt, M12 x 1.5 x 90 with hexagon nut/always replace following removal | Initial tightening | 70 Nm (51.6 ftlb.) | ||
| Control arm to wheel bearing housing | Hexagon-head bolt, M12 x 1.5 x 90 with hexagon nut/always replace following removal | Final tightening | + 180° | ||
| Rear upper control arm to wheel bearing housing | Hexagon-head bolt M12 x 1.5 x 80/always replace following removal | Initial tightening | 60 Nm (44.3 ftlb.) | ||
| Rear upper control arm to wheel bearing housing | Hexagon-head bolt M12 x 1.5 x 80/always replace following removal | Final tightening torque angle | + 90° | ||
| Front upper control arm to wheel bearing housing | Hexagon-head bolt M12 x 1.5 x 80 with hexagon nut/always replace following removal/both pins on the control arm must face upwards | Initial tightening | 70 Nm (51.6 ftlb.) | ||
| Front upper control arm to wheel bearing housing | Hexagon-head bolt M12 x 1.5 x 80 with hexagon nut/always replace following removal/both pins on the control arm must face upwards | Final tightening | + 180° | ||
| steering tie rod to wheel bearing housing | Hexagon-head bolt M12 x 1.5 x 80/replace following removal | Initial tightening | 60 Nm (44.3 ftlb.) | ||
| Tie rod to wheel bearing housing | Hexagon-head bolt M12 x 1.5 x 80/replace following removal | Final tightening torque angle | + 90° | ||
| Connecting link (PDCC actuator) to anti-roll bar | Collar nut, M12/always replace following removal | Initial tightening | 50 Nm (36.9 ftlb.) | ||
| Connecting link (PDCC actuator) to anti-roll bar | Collar nut, M12/always replace following removal | Final tightening angle | + 50 (37 ftlb.) ° | ||
| Drive shaft to transmission flange | Item 2: Replace cheese head bolt M10 x 46.5 with washer after removal | Initial tightening | 40 Nm (29.5 ftlb.) | ||
|

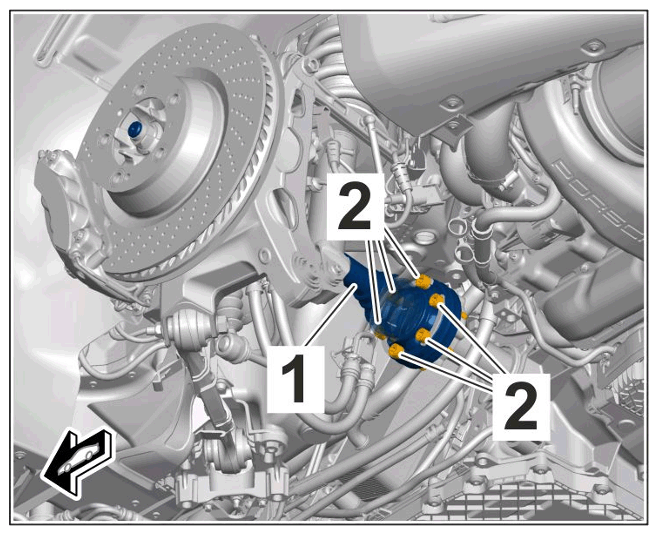

Mounting for drive shaft on transmission flange |
|||||
| Drive shaft to transmission flange | Item 2: Replace cheese head bolt M10 x 46.5 with washer after removal | Final tightening torque angle | + 110° | ||
|
Mounting for drive shaft on transmission flange |
|||||
| Drive shaft to wheel hub | Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread. | 1. Step | 260 Nm (191.8 ftlb.) | ||
| Drive shaft to wheel hub | Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread. | 2. Step | + 120° | ||
| Drive shaft to wheel hub | Item 1: Loosen lock nut M22 x 1.5 by one turn. | 3. Step | - 360° | ||
| Drive shaft to wheel hub | Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread. | 4. Step | 120 Nm (88.5 ftlb.) | ||
| Drive shaft to wheel hub | Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread. | 5. Step | + 120° | ||
|

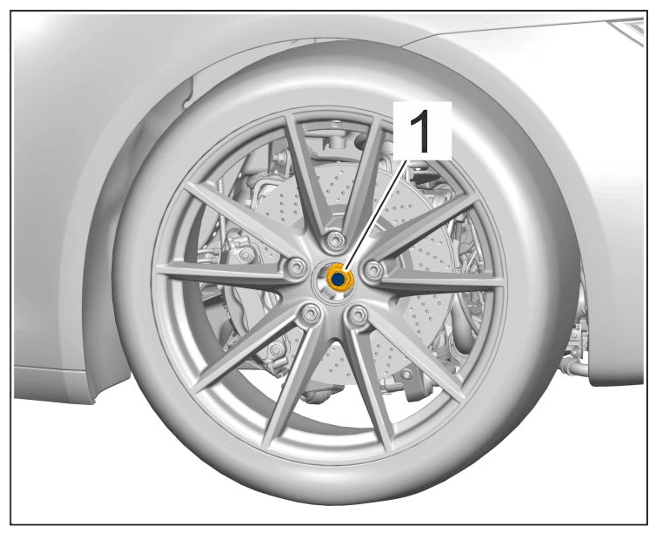

Fastening drive shaft to wheel hub |
|||||
| Drive shaft to wheel hub | Item 1: Lock nut M22 x 1.5/replace lock nut after removal/Grease drive shaft splines with Molub AlloyPaste/Keep threading greasefree. | Final tightening rotation angle | 460 Nm (339.3 ftlb.) | ||
|
Fastening drive shaft to wheel hub |
|||||
| Spring strut to wheel bearing housing | Item 2: Cheese head bolt M12 x 1.5 | Tightening torque | 110 Nm (81.1 ftlb.) | ||
|

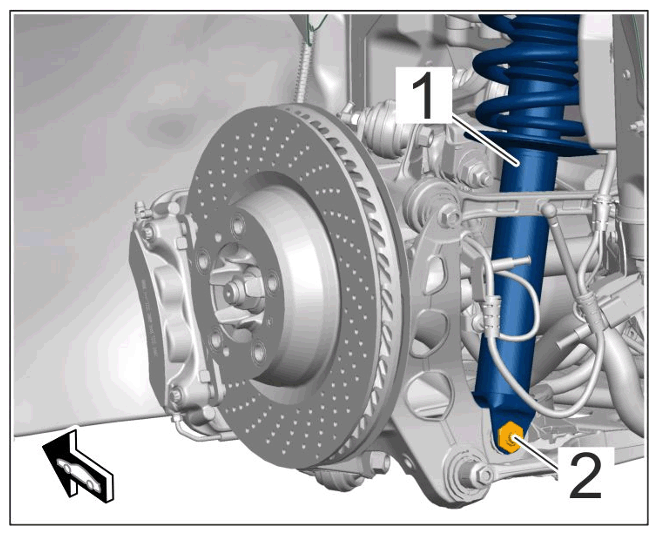

Mounting for spring strut, rear on wheel bearing housing |
|||||
