Installing Boost Pressure Sensor
WARNING: This page is about a different variant/trim than selected.

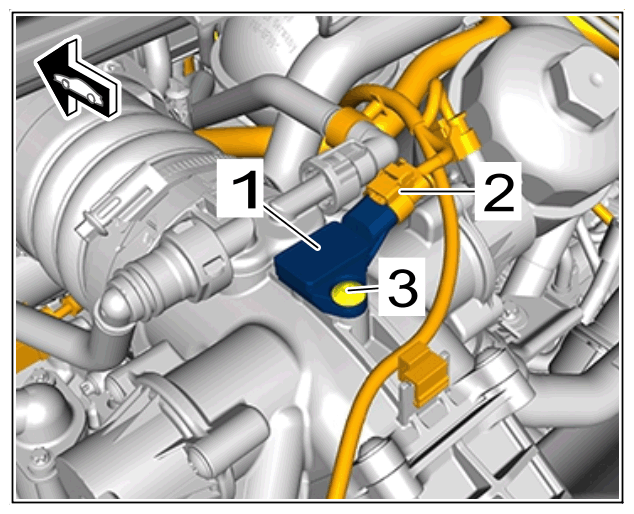

- Install boost pressure sensor -1-
.
Check O-rings and replace them if damaged.
Position boost pressure sensor -1-
.
Fit and tighten screw -3-
.
> Tightening torque 3 Nm (2 ftlb.)
Connect and lock electric plug connection -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Boost-pressure sensor
