Removing And Installing The Turbocharger Electronic Adjuster (VTG)

WARNING: This page is about a different variant/trim than selected.

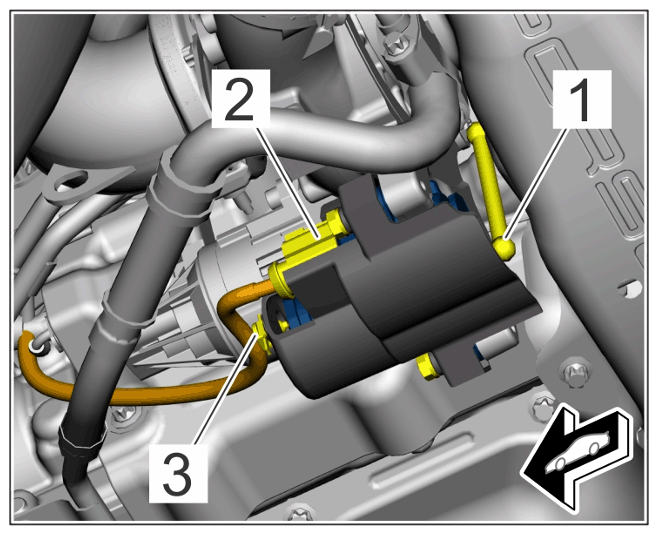

  1. Unclip control rods -1-  , unlock and remove electric plug connection -2-  , unclip cable -3-  .
    G15507438Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control rod and wiring for electronic adjuster (VTG)

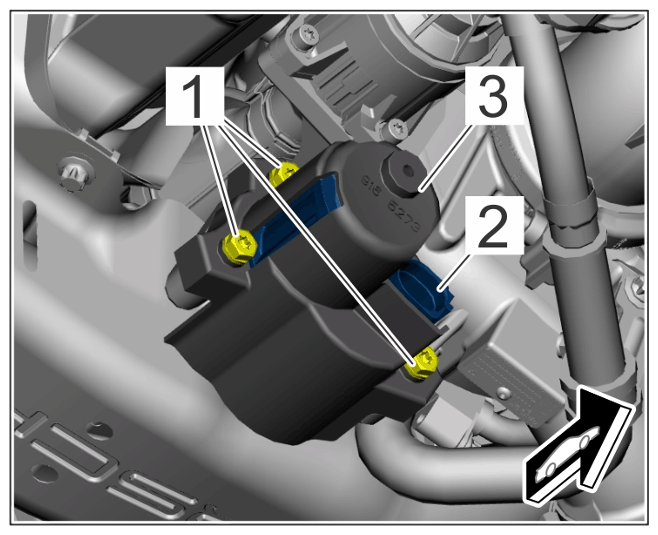

  2. Remove electronic adjuster (VTG) -2-  .
    G15507439Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electronic adjuster (VTG) mounting

    Unscrew screws -1-  and remove electronic adjuster (VTG) -2-  with shield -3-  .

  3. Installation is performed in reverse order to removal.

    Secure electronic adjuster (VTG) to >.
