Removing Electronic Adjuster

WARNING: This page is about a different variant/trim than selected.

Remove shield -1- on kinematics.
Remove single-lug clamps -2- , bend up shield and remove it.

Replace shield and single-lug clamps (available as a set).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

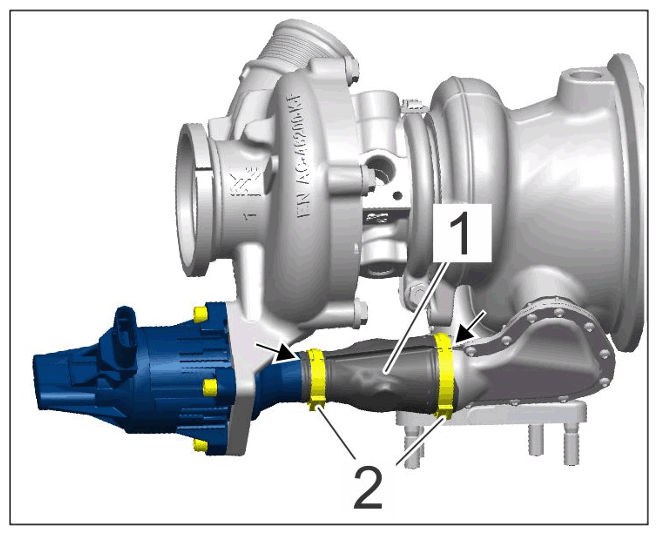

Shield on kinematics for electronic adjuster
Loosen hexagon nuts -1 and 2- on the pull rod -3- . Counter at the lever on the kinematics from the rear using an open-ended wrench (a/f 16) -arrow- .
Unscrew the lock nut -2- on the lever.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

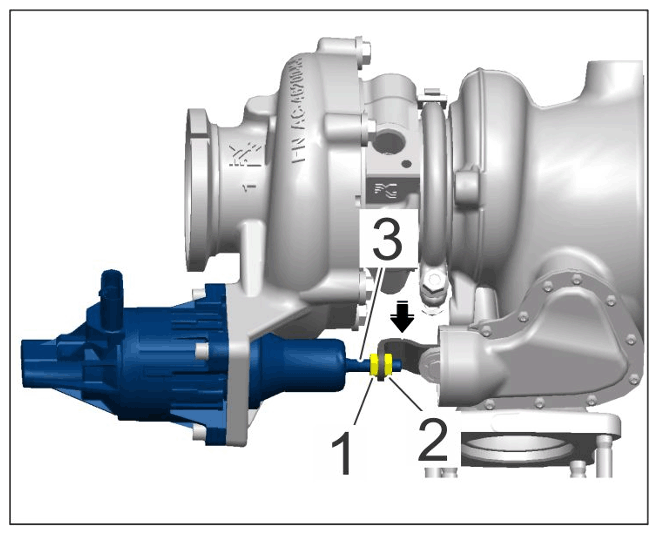

Pull rod of kinematics on electronic adjuster
Unscrew screws -2- on electronic adjuster -1- and remove electronic adjuster.
If you are replacing the electronic adjuster, unscrew the adjusting nut from the pull rod.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

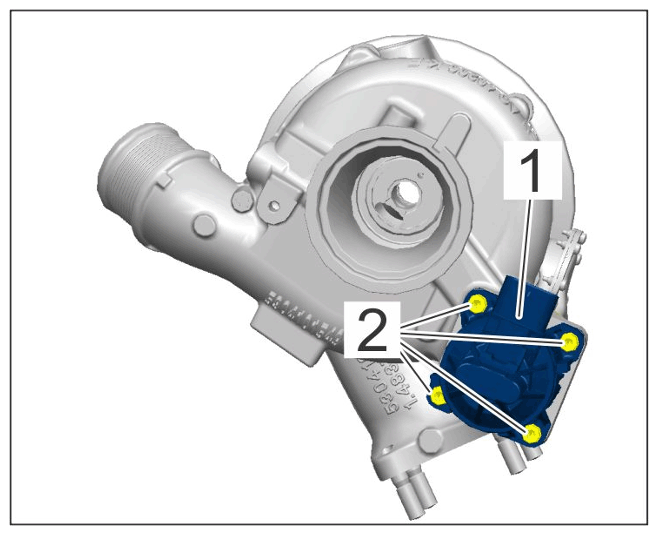

Electronic adjuster on turbocharger
