Removing Pressure Pipe
WARNING: This page is about a different variant/trim than selected.

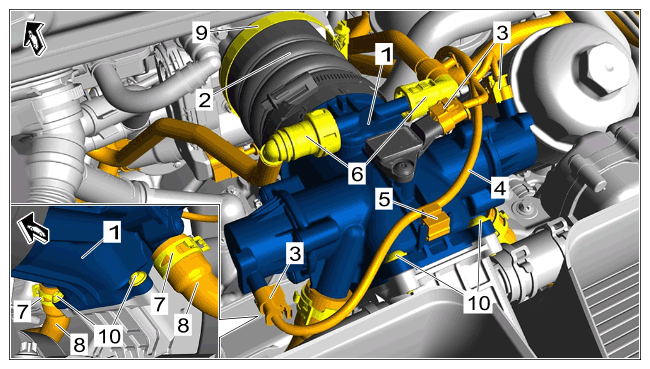

- Remove pressure pipe -1-
.
Release and disconnect electric plug connections -3- .
Unclip clip -5- and set electric line -4- aside.
Release and disconnect quick connectors -6- .
Loosen spring band clamps -7- using > VAS 6891 - spring band clamp pliers and disconnect hoses -8- from pressure pipe -1- .
Loosen clip -9- .
Unscrew and remove screws -10- .
Disconnect the pressure pipe -1- and hose -2- from the throttle housing and charge air cooler.
Remove seal.
Pressure pipe
- Clean sealing surfaces.
