Removing Pressure Pipe (At The Side)

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

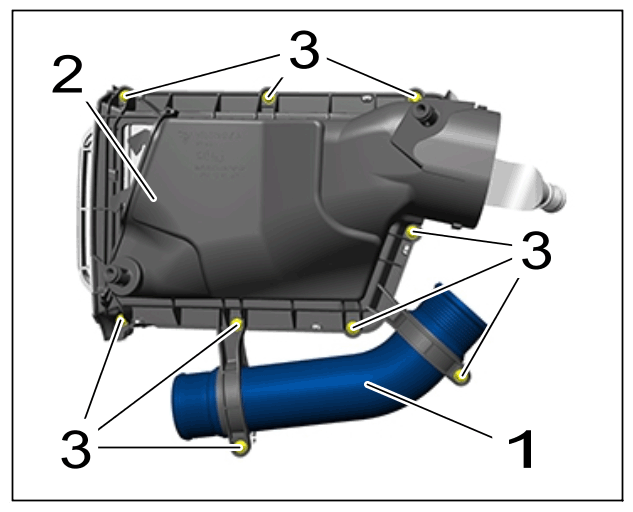

  1. Remove pressure pipe (at the side) -1-  .

    Unscrew screws -3-  and remove lower part of air cleaner -2-  .

    Remove pressure pipe (at the side) -1-  .

    G15507428Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure pipe (at the side)
