Removing The Moulded Hose (Pressure Side) From The Turbocharger

WARNING: This page is about a different variant/trim than selected.
  1. Remove moulded hose -1-  .

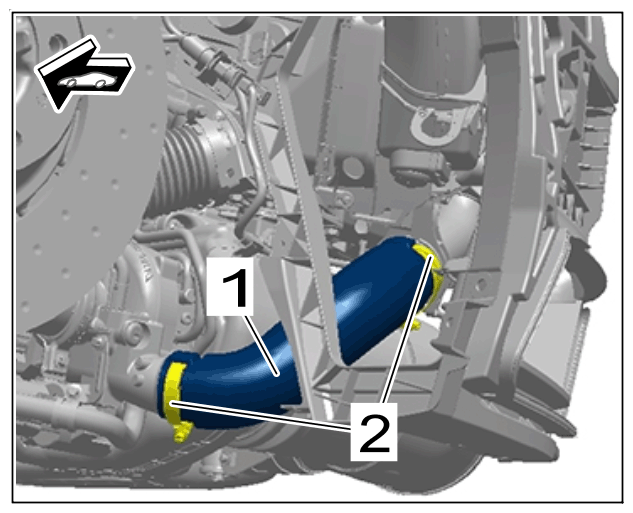

    G15507417Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moulded hose on turbocharger

    Loosen screw-type clamps -2-  .

    Detach -1-  moulded hose.
