Installing The Moulded Hose (Pressure Side) On The Turbocharger

WARNING: This page is about a different variant/trim than selected.
  1. Installing -1-  moulded hose.

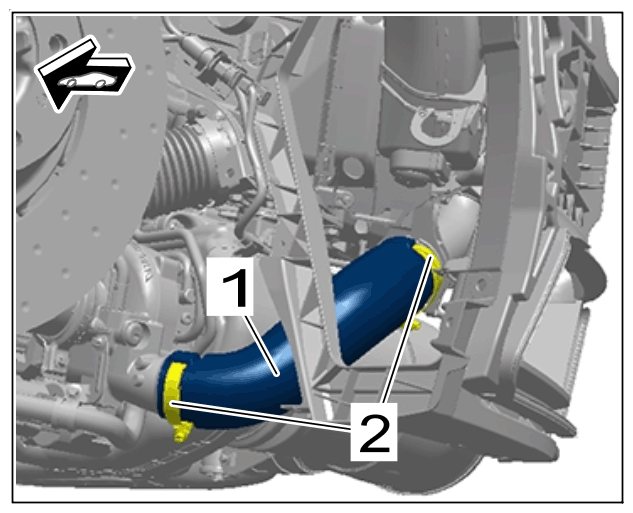

    G15507419Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moulded hose on turbocharger

    Coat the inside of the moulded hose -1-  with Kluberplus gel  .

    Position the -1-  moulded hose.

    Tighten screw-type clamps -2-  .
