Installing The Moulded Hose (Pressure Side) On The Charge-Air Cooler
WARNING: This page is about a different variant/trim than selected.
- Installing -1-
moulded hose.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

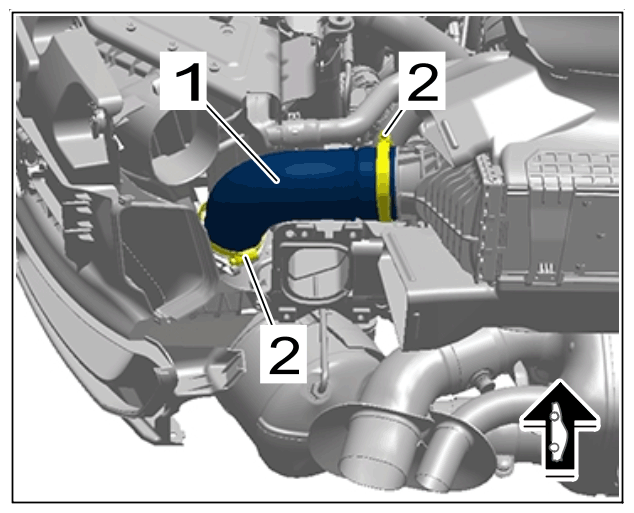

Moulded hose on charge-air cooler
Coat the inside of the moulded hose -1-
with Kluberplus gel
.
Position the -1-
moulded hose.
Tighten the -2-
screw-type clamps.
