Removing Turbocharger

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
→ Let hot components cool down.

→ Wear personal protective gear.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

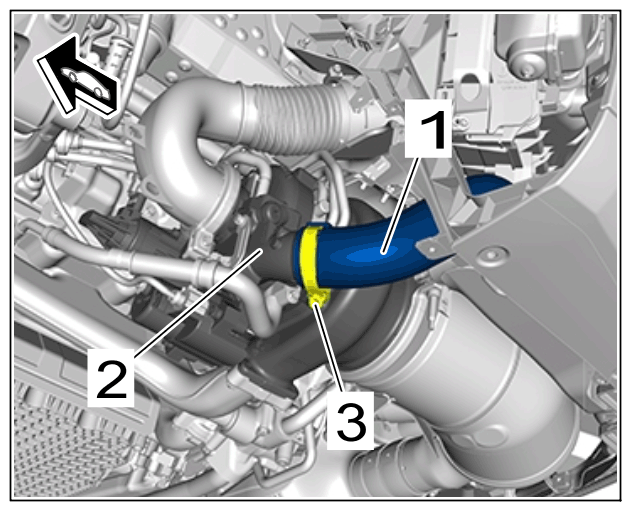

Disconnect pressure hose -1- from turbocharger -2- .
Loosen screw-type clamp -3- .

Detach pressure hose -1- from turbocharger connection piece and set aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure hose
Right side only:

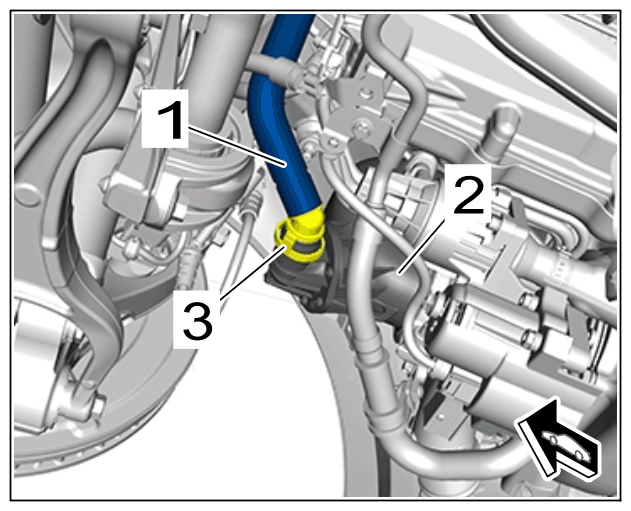

Disconnect vent line -1- from charge air pipe -2- .

Release and pull off quick-connecting lock -3- .

Move vent line -1- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line on charge air pipe

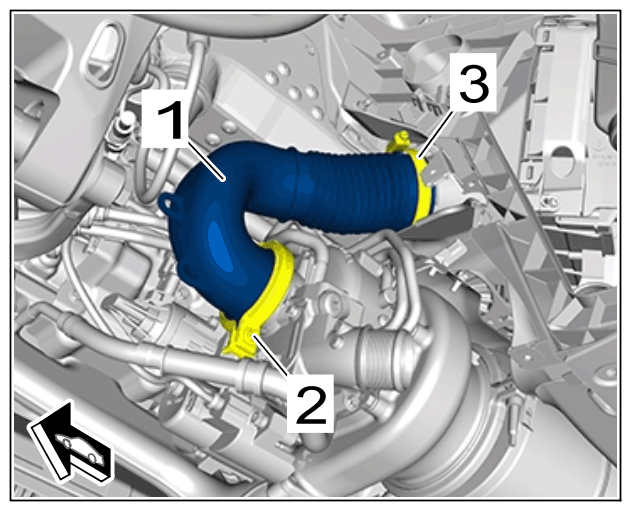

Remove intake manifold -1- .
Undo V-band clamp screw -2- .

Loosen screw-type clamp -3- .

Disconnect and remove intake manifold -1- .

Replace V-band clamp.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake manifold

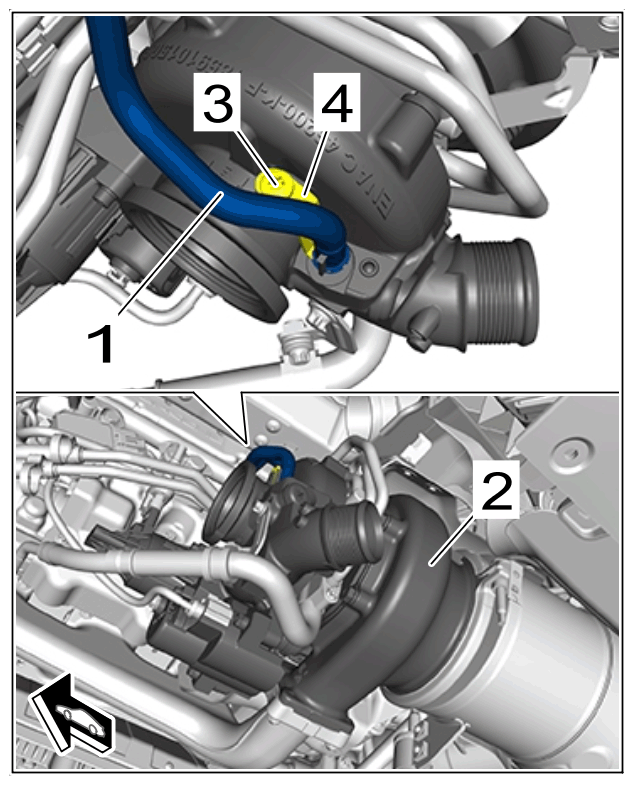

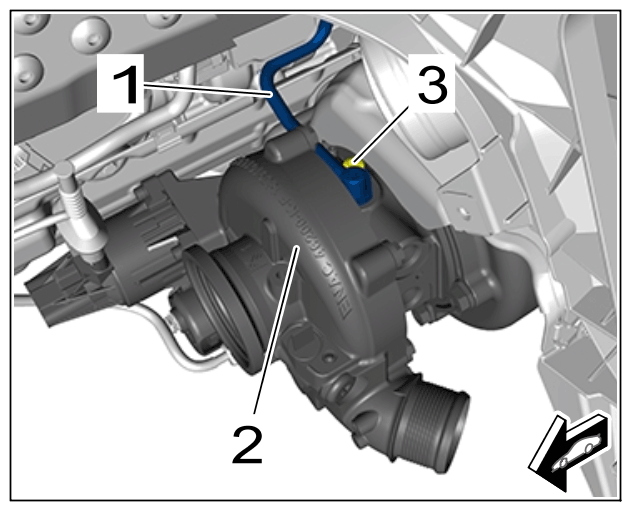

Disconnect tank vent line -1- from turbocharger -2- .
Unscrew screw -3- .

Detach tank vent line -1- together with holder -4- .

Remove -4- holder and set tank vent line -1- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line

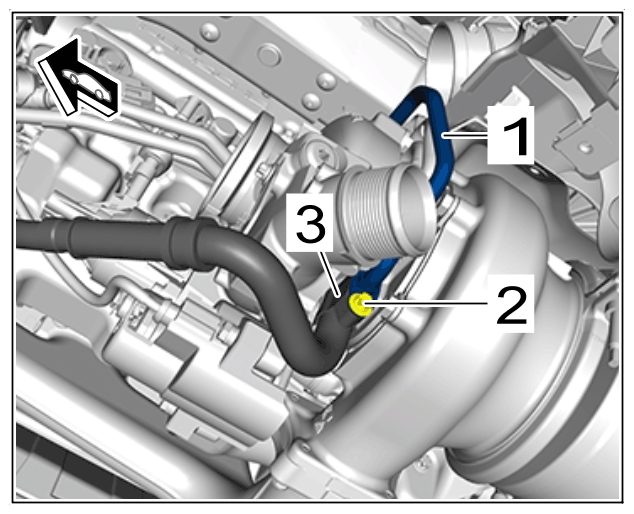

Disconnect vent line for turbocharger -1- .
Unscrew screw -2- .

Detach turbocharger vent line -1- from oil return line flange -3- and set aside.

Catch escaping oil and close off line connections using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger vent line

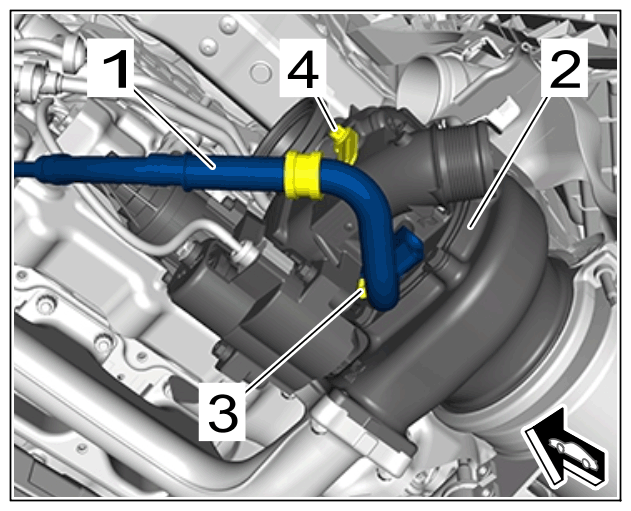

Disconnect turbocharger oil return line -1- from turbocharger -2- .
Undo screw securing oil return line flange -3- .

Unscrew screw on holder -4- .

Detach turbocharger oil return line -1- and set aside.

Catch escaping oil and close off line connections using suitable stoppers.

Replace O-rings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger oil return line

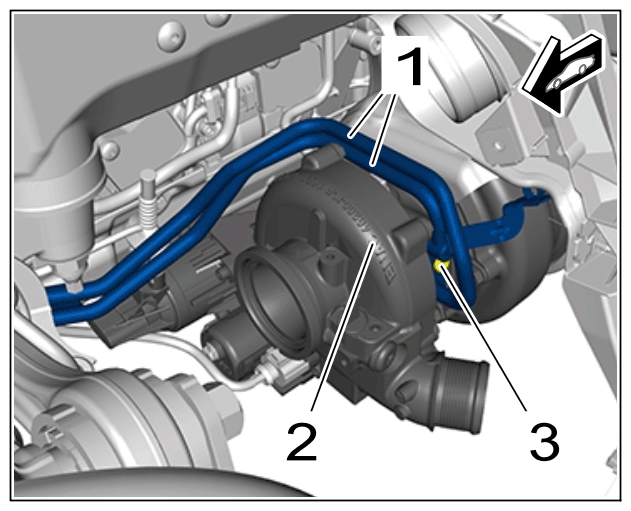

Loosen turbocharger coolant lines -1- from turbocharger -2- .
Unscrew screw -3- .

Detach turbocharger coolant lines -1- and set aside.

Catch escaping coolant and close off line connections using suitable stoppers.

Replace O-rings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines for turbocharger
Disconnect turbocharger oil supply line -1- from turbocharger -2- .
Unscrew screw -3- .

Detach turbocharger oil supply line -1- and set aside.

Catch escaping oil and close off line connections using suitable stoppers.

Replace O-rings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil supply line for turbocharger

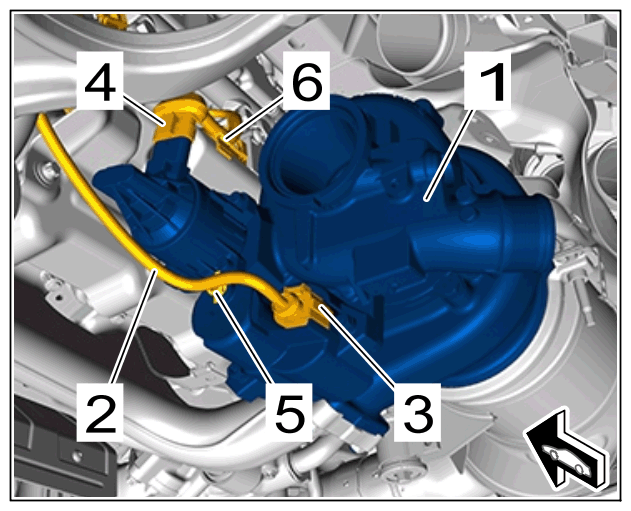

Disconnect electric line -2- from turbocharger -1- .
Release and disconnect electric plug connections -3 and 4- .

Unclip clips -5 and 6- .

Move electric line -2- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line

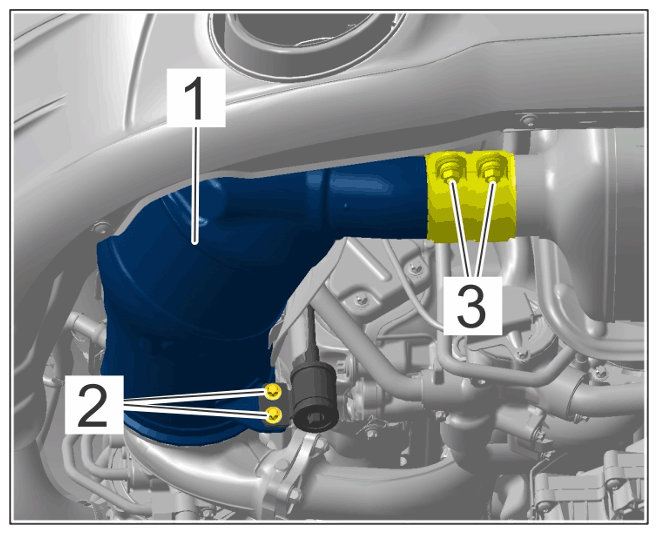

Loosen catalytic converter -1- .
Unscrew screws -2- on the holder.

Undo nuts on clamping sleeve -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converter

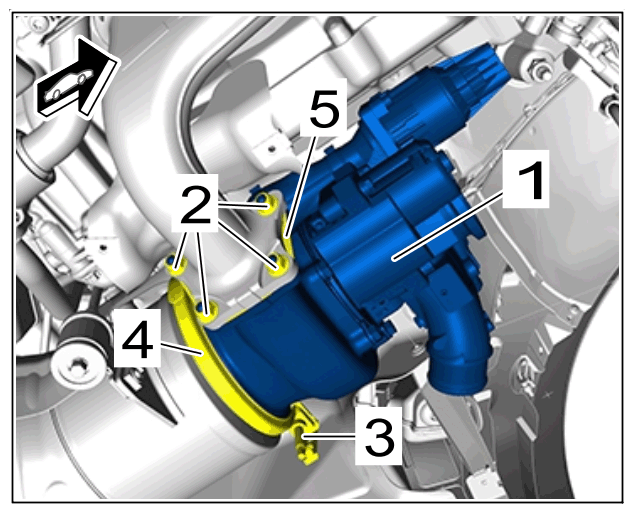

Remove turbocharger -1- .
Unscrew nuts -2- .

Undo V-band clamp screw -3- .

Remove turbocharger -1- .

Replace seal -5- .

Replace V-band clamp -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger
