Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

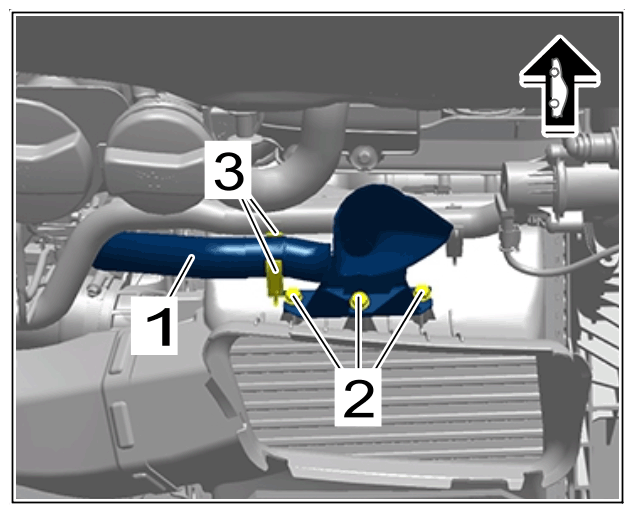

| Screw securing funnel for oxygen sensor cooling to air guide for charge-air cooler |
Item 2 |
Tightening torque |
2.2 Nm (1.6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Oxygen sensor cooling hose |
|
|
|
|
|
| Air guide to charge-air cooler |
Tapping screw |
Tightening torque |
3 Nm (2 ftlb.) |
|
|
