Removing The Air Guide On The Charge-Air Cooler (Bottom)
WARNING: This page is about a different variant/trim than selected.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.
- Remove the air guide on charge-air cooler (bottom) -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

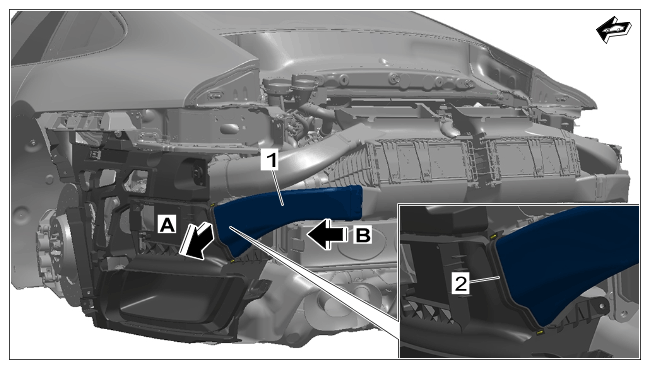

Air guide for charge-air cooler (bottom)
Unclip rear carrier section -2-
.
Detach the air guide for charge-air cooler (bottom) -1-
in -direction of arrow A-
and then remove it in -direction of arrow B-
.
