Installing Air Guide On Charge-Air Cooler (Bottom)
WARNING: This page is about a different variant/trim than selected.
- Install the air guide on the charge-air cooler (bottom) -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

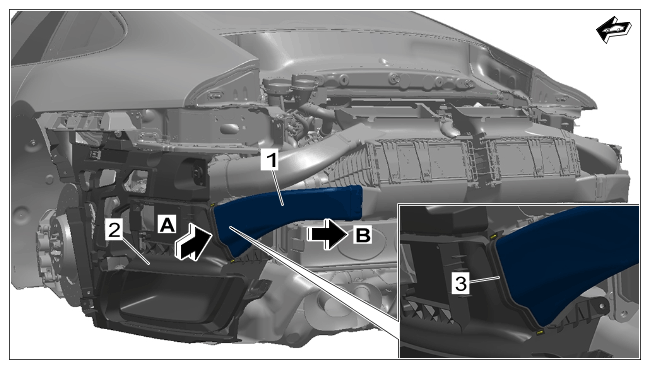

Air guide for charge-air cooler (bottom)
insert air guide for charge-air cooler (bottom) -1-
into -direction of arrow B-
and then position in -direction of arrow A-
in rear bracket -2-
.
Clip in rear bracket section -3-
.
