Section 34 (21 Exhaust Gas Turbocharging 3.8L (Eng Code MDK.H) -- 992 - 911 CARRERA (992))
>>
WM, 211019 Removing And Installing Air Guide For Charge-Air Cooler
>>
Installation Position
Installation Position
WARNING:
This page is about a different variant/trim than selected.

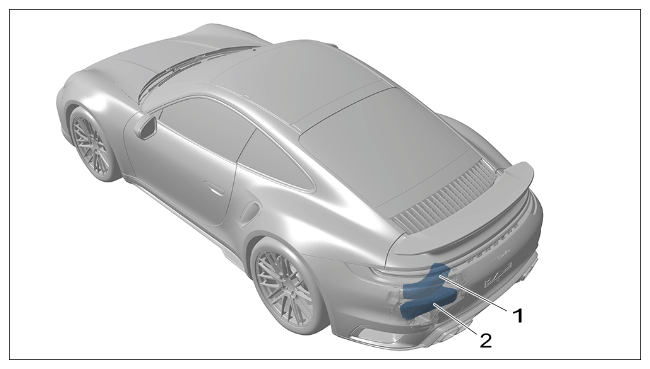

Fig 1: Air Guide For Charge-Air Cooler Components Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation position
1
Air guide on charge-air cooler, top
2
Air guide for charge-air cooler, bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
