Removing Positive Crankcase Ventilation Hose

WARNING: This page is about a different variant/trim than selected.
  1. Remove positive crankcase ventilation hose -1-  .

    Unscrew screws -2-  .

    Release spring band clamps -3-  and disconnect positive crankcase ventilation hose -1-  .

    Release connections -4-  and disconnect positive crankcase ventilation hose -1-  .

    Detach positive crankcase ventilation hose -1-  from the holders -5-  .

    Feed out positive crankcase ventilation hose -1-  .

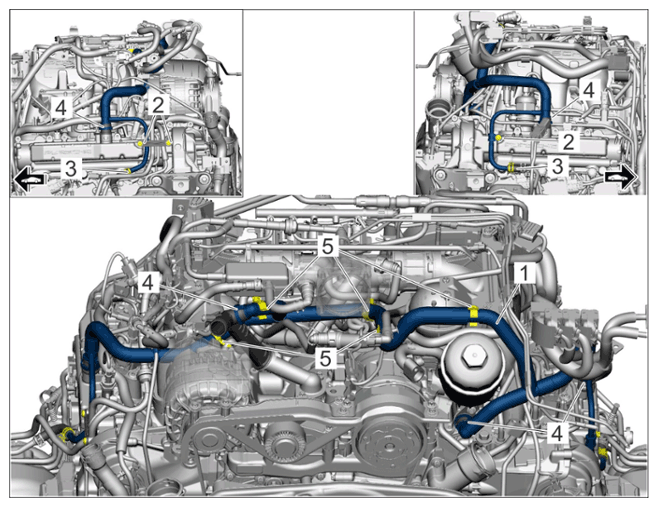

    G15487249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positive crankcase ventilation hose
