Removing Connecting Link For Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
  1. Remove connecting link for anti-roll bar -1-  from the anti-roll bar.
    1. 1.1 Unscrew nut -2-  and counter at the articulated bolt on the connecting link.
  2. Remove connecting link for anti-roll bar -1-  from the wheel bearing housing.
    1. 2.1 Support wheel bearing housing using > VAS 6931 - Transmission and Engine Jack.
    2. 2.2 Unscrew nut -3-  and counter at the hexagon -4-  on the connecting link.

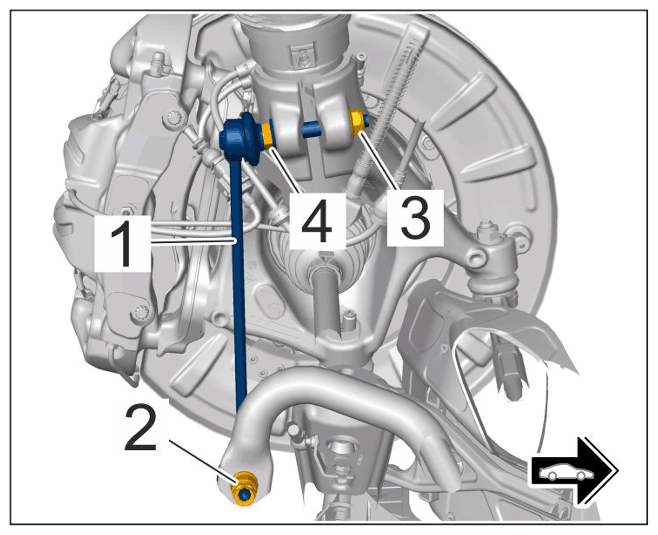

G15521862Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link
