Removing Connecting Link For Anti-Roll Bar (PDCC)
WARNING: This page is about a different variant/trim than selected.
WARNING:
Caustic fluids
- Danger of chemical burns
→ Wear personal protective gear.
→ Ensure that there is good ventilation.
→ Avoid contact with caustic fluid.
→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
NOTE:
Aggressive fluids
- Risk of damage to components and surfaces
- Do not spill fluids.
- In the event of contact, wash the component or surface with water.
- Replace components that are already damaged.

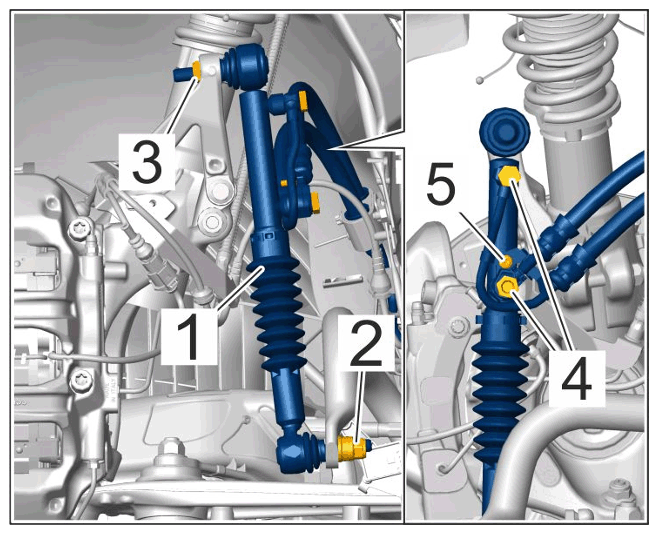

- Remove pressure lines from connecting link for anti-roll bar -1-
.
- 1.1 Place a suitable absorbent cloth underneath and use a drip pan if possible.
- 1.2 Unscrew screws -4- and pull off pressure lines.
- 1.3 Unscrew screw -5- on bracket for pressure lines.
- Remove connecting link for anti-roll bar -1-
from the anti-roll bar.
- 2.1 Unscrew nut -2- and counter at the articulated bolt on the connecting link for anti-roll bar.
- Remove connecting link for anti-roll bar -1-
from the PDCC adapter.
- 3.1 Unscrew nut -3- and counter at the articulated bolt on the connecting link for anti-roll bar.
