Removing Control Arm
WARNING: This page is about a different variant/trim than selected.
Information
Control arm -1-
is removed together with brake disc air guide -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

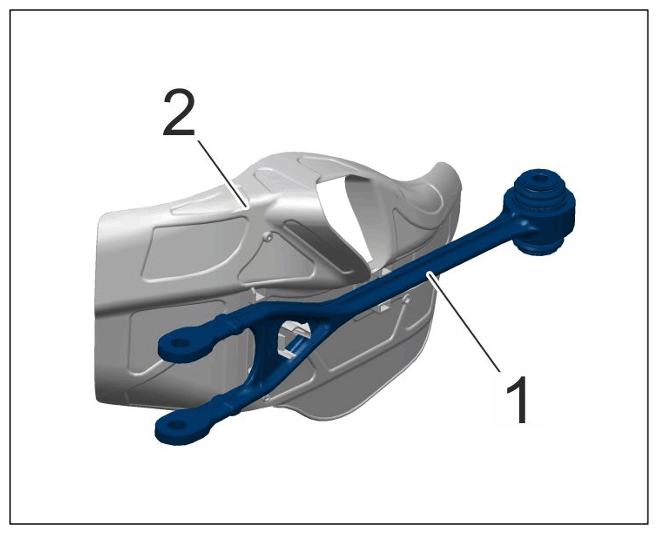

Control arm with brake disc air guide
- Remove cover on lower trailing arm -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

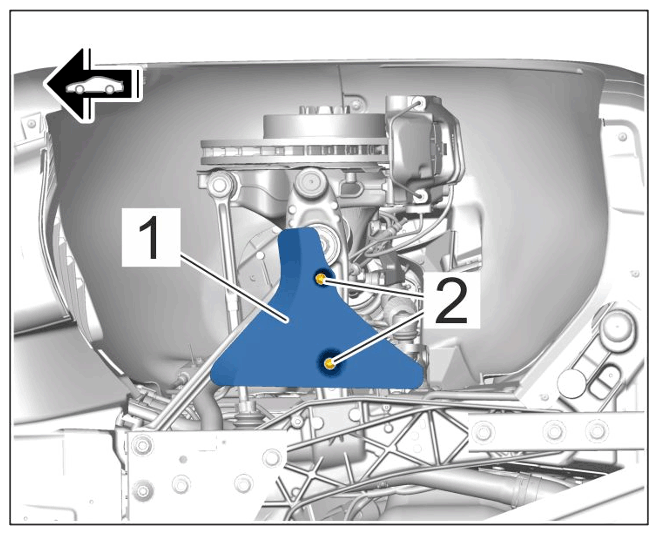

Mounting for cover on lower trailing arm
- 1.1 Unscrew and remove screws -2-
.
- Remove control arm -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

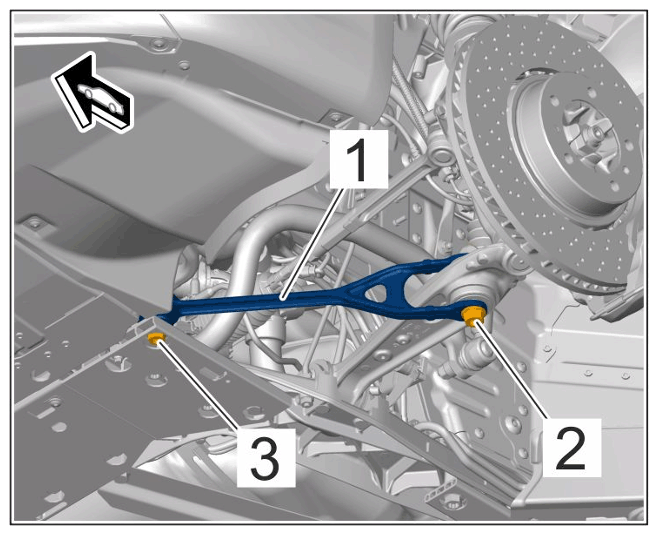

Mounting for control arm
- 2.1 Loosen threaded connection -2-
.
- 2.2 Unscrew screw -3-
.
