Subsequent Work
WARNING: This page is about a different variant/trim than selected.

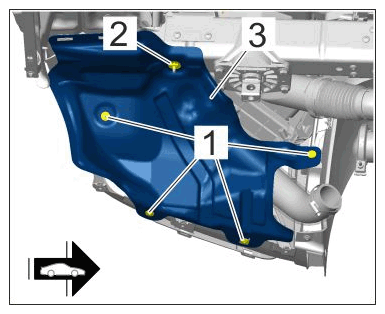

- Install heat shield -3-
on the rear bracket.
Position heat shield and fit and tighten screws -1- and nut -2- .
-1- > Tightening torque 2.5 Nm (1.75 ftlb.)
-2- > Tightening torque 2.5 Nm (1.75 ftlb.)
Heat shield on rear bracket
- Secure the engine.
- 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
