Removing Engine Mounting

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Only for vehicles with PADM  :

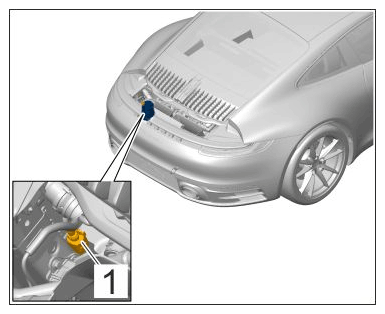

    Release and disconnect cable plug -1-  .

    G15485391Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable plug for PADM engine mount

  2. Remove engine mount -2-  .

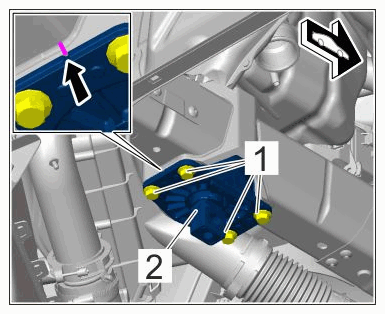

    Mark the position of the engine mount on both sides -arrow-  of the bodyshell.

    Unscrew screws -1-  and remove engine mount -2-  .

    G15485392Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Engine mount
